Product Overview

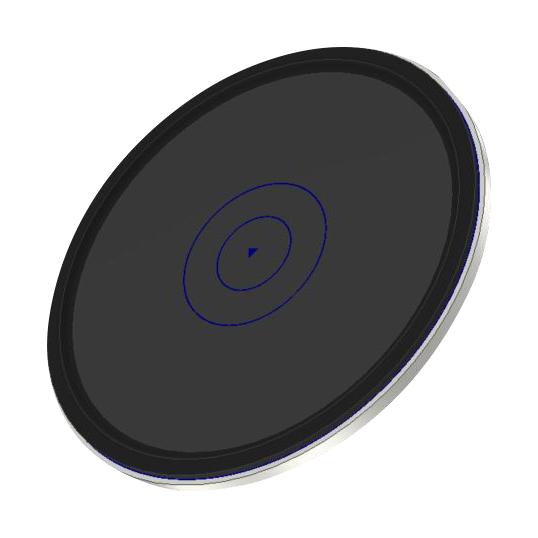

PUI AUDIO AS04008MR-21-R Speaker, 500 Hz to 10 kHz, 8 ohm, 1.5 W, 89 dB, Round, Bare Mount
Product details
| Driver Type |
General Purpose |
| External Diameter - Metric |
40mm |
| Resonant Frequency |
0 |
| Speaker Shape |
Round |
| Product Dimensions |
40mm x 5mm |
| Frequency Response Min |
500Hz |
| Temperature Grade |
Standard |
| Product Range |
- |
| Power Rating Max |
1.5W |
| External Depth - Imperial |
0.2" |
| Impedance |
8ohm |
| Power Rating Nom |
1W |
| Sound Pressure Level (SPL) |
89dB |
| External Diameter - Imperial |
1.57" |
| Frequency Range |
630Hz to 6kHz |
| Frequency Response Max |
10kHz |
| IP Rating |
- |
| Speaker Mounting |
Bare Mount |
| External Depth - Metric |
5mm |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AS04008MR-21-R |
| Quantity |
Each |
| Technical Data Sheet (553.91KB) EN |
View or download |
