Product Overview

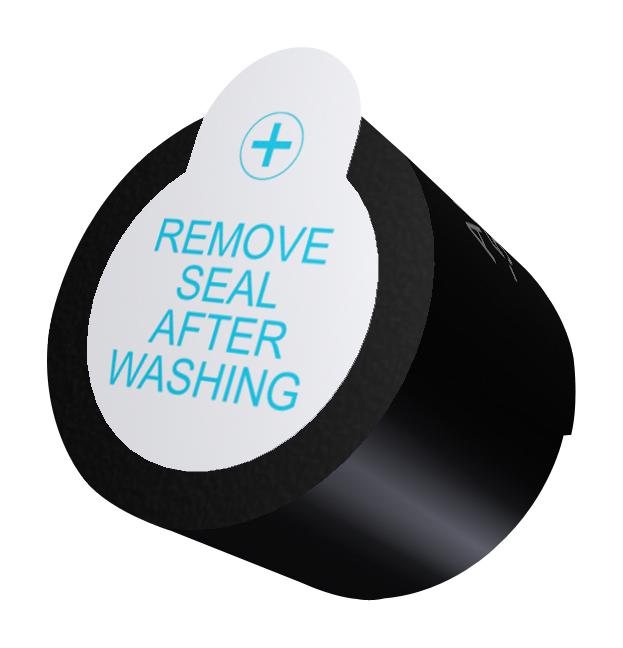

PUI AUDIO AI-1223-TWT-5V-5-R Transducer, Audio Indicator, 2.3kHz, 4 VDC to 7 VDC, Continuous, 85 dBA, 30mA, Through Hole
Product details
| Transducer Function |
Audio Indicator |
| Supply Voltage Min |
4VDC |
| Resonant Frequency |
2.3kHz |
| Current Rating |
30mA |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
PBT (Polybutylene Terephthalate) |
| Operating Temperature Min |
-20°C |
| Product Range |
- |
| Tones |
Continuous |
| Supply Voltage Max |
7VDC |
| Sound Pressure Level (SPL) |
85dBA |
| Drive Circuit |
- |
| Transducer Mounting |
Through Hole |
| IP Rating |
- |
| Operating Voltage Range |
4VDC to 7VDC |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AI-1223-TWT-5V-5-R |
| Quantity |
Each |
| Technical Data Sheet (256.32KB) EN |
View or download |
