Product Overview

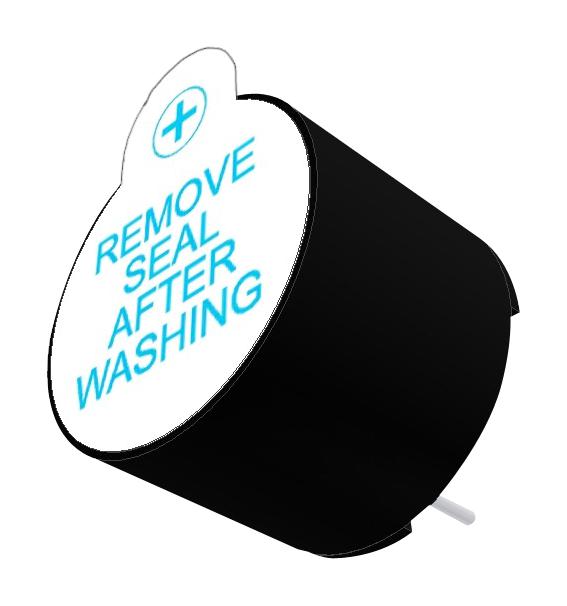

PUI AUDIO AT-1224-TWT-12V-R Transducer, Buzzer, 2.4 kHz, 40 mA, 6 V to 16 V, 85 dBA, Through Hole
Product details
| Transducer Function |
Buzzer |
| Supply Voltage Min |
6V |
| Supply Voltage Max |
16V |
| Current Rating |
40mA |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
Noryl |
| Operating Temperature Min |
-30°C |
| Product Range |
- |
| Tones |
- |
| Resonant Frequency |
2.4kHz |
| Sound Pressure Level (SPL) |
85dBA |
| Drive Circuit |
- |
| Transducer Mounting |
Through Hole |
| IP Rating |
- |
| Operating Voltage Range |
6V to 16V |
| Operating Temperature Max |
80°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
AT-1224-TWT-12V-R |
| Quantity |
Each |
| Technical Data Sheet (328.86KB) EN |
View or download |
