Product Overview

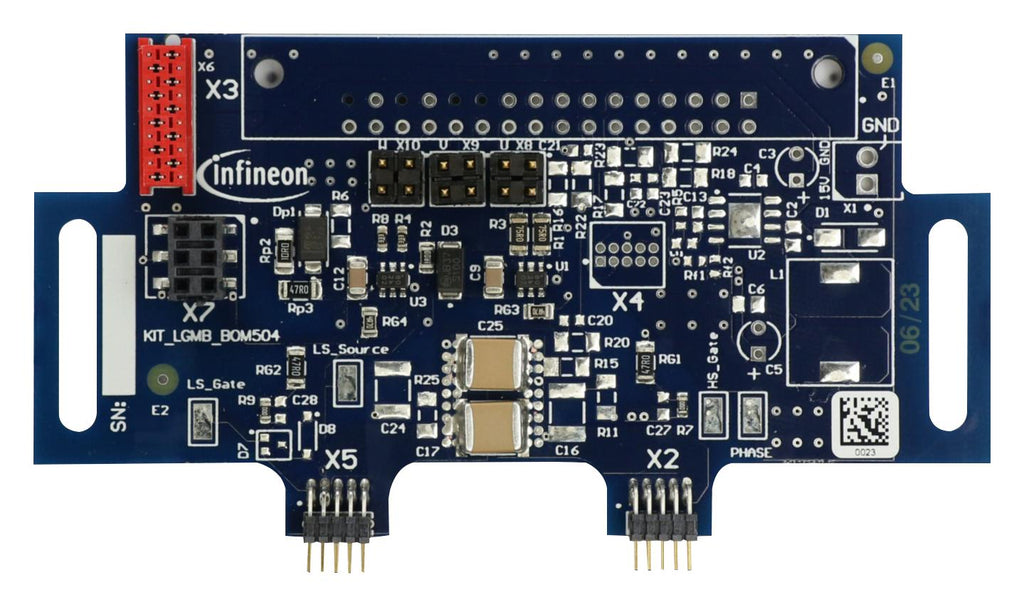

KITLGMBBOM504TOBO1 is a kit motherboard for low voltage drives scalable power demo board. The kit mother board serves as supporting board for the LVD scalable power demo board platform. It provides the system with the gate drivers for driving the MOSFETs of the power boards. The mother board connects to the control through the host mother board and does not connect to an individual control board. Suitable for prototyping forklifts and LEVs(low speed cars, e-scooters, 3-wheelers, golf cars), BPA BLDC motor drives, cordless power tools applications.
- Gate resistors on FR4 for ease of rework
- Additional ceramic capacitor connected to the DC bus
- Optional branch out connection for paralleling of MOSFETs
Product details
| Accessory Type |
Motherboard |
| Product Range |
- |
| For Use With |
Infineon LVD Scalable Power Demonstration Boards |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
INFINEON |
| Part Number |
KITLGMBBOM504TOBO1 |
| Quantity |
Each |
| Technical Data Sheet (2.95MB) EN |
View or download |
