Description
Product Overview
CY7113 is a EZ-PD™ PMG1-S3 prototyping kit a development platform to design products that can be powered from a high-voltage USB PD port, and also need a microcontroller with CAPSENSE™ capability to implement different features. This kit implements USB PD sink capability. It also supports two self-capacitance-based CAPSENSE™ buttons and one 5-segment slider. This is an ARM Cortex-M0+ based controller with 256KB flash and 32KB SRAM. It implements a complete Type-C USB-PD transceiver and supports 26 GPIOs of which, some of them can be re-purposed to support SCB (serial communication block) functions such as I2C, UART & SPI. CapSense is supported on 16 pins in PMG1-S3 via a CAPSENSE™ Sigma-Delta (CSD) block.
- Single phase configuration
- DC input type
- Output current range from 0.5A to 5A
- Output voltage range from 3.3V to 28V
- Supply voltage range from 3.3V to 32V
- USB topology
Contents

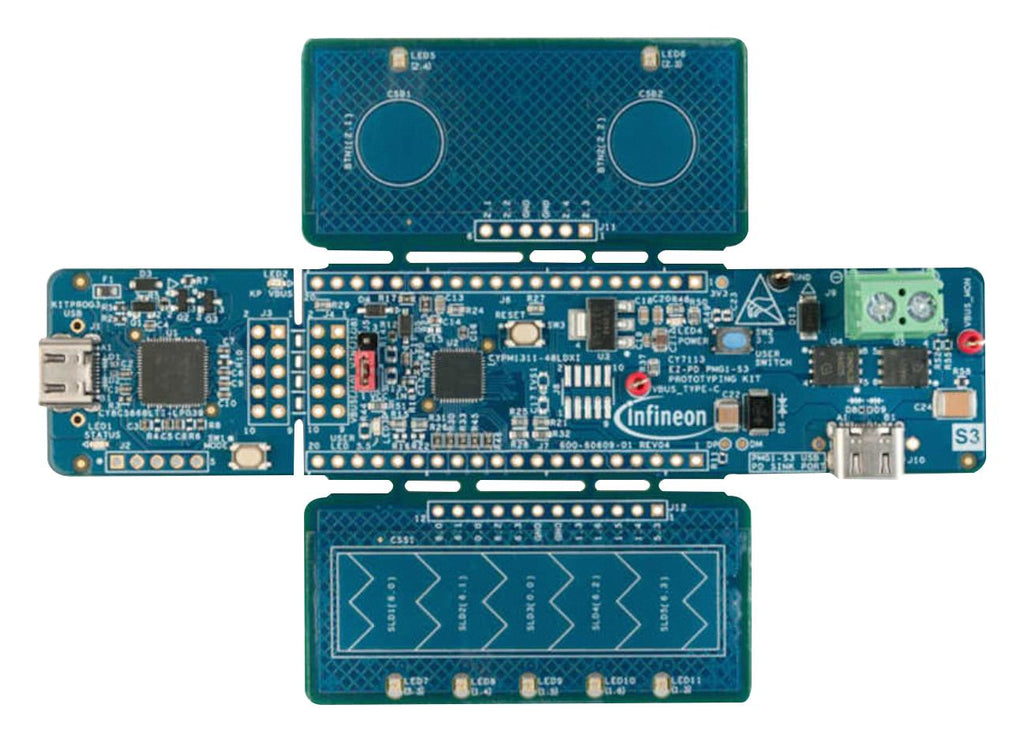

CY7113 EZ-PD™ PMG1-S3 prototyping board, Quick start guide.
Product details
| Kit Application Type | Interface & Communication |
| Silicon Manufacturer | Infineon |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
| Application Sub Type | USB Microcontroller |
| Silicon Core Number | CYPM1311-48LDXI |
| Kit Contents | PMG1-S3 Prototyping Board CYPM1311-48LDXI, Quick Start Guide |
Other details
| Brand | INFINEON |
| Part Number | CY7113 |
| Quantity | Each |
| User Manual (3.72MB) EN | View or download |
