Product Overview

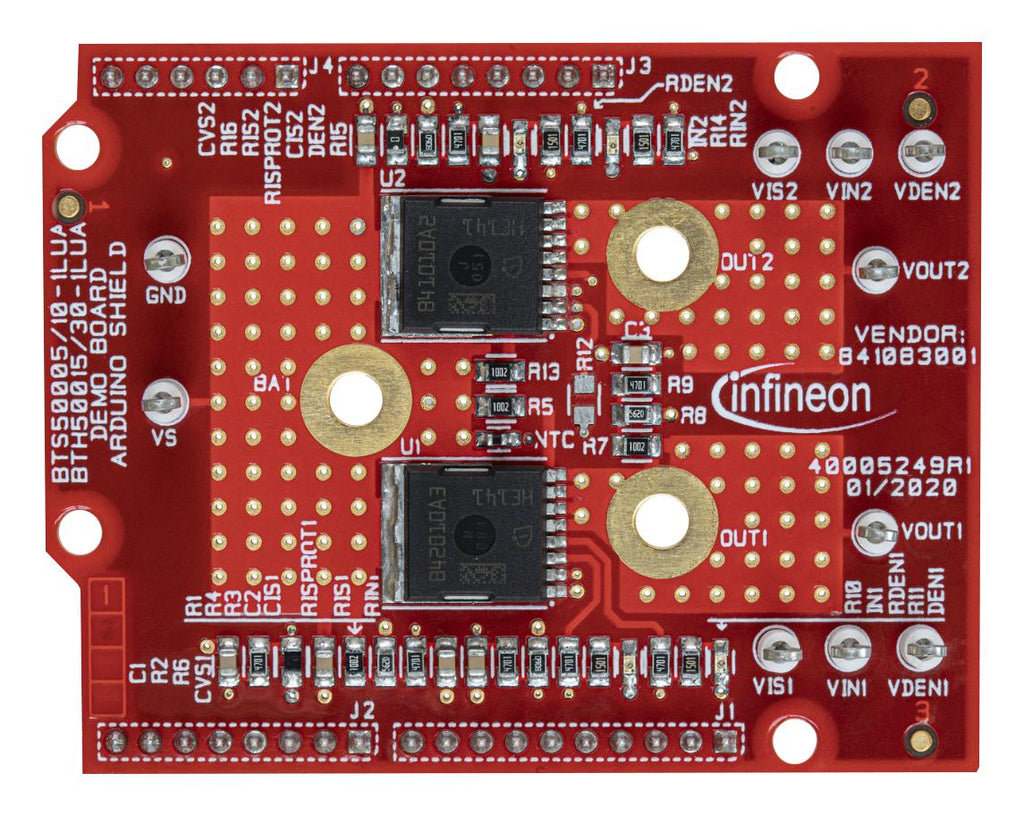

BOARDBTH500151LUATOBO1 is a 48V protected switch shield for Arduino is a flexible evaluation board dedicated to drive loads. It comes with two devices that can be evaluated: BTH50015-1LUA (RDS(ON) 1.5mohm) and BTH50030-1LUA (RDS(ON) 3mohm) the lowest ohmic smart high-side power switches available in the market for 24V and 48V power nets. Suitable for power distribution, ECU/BCM power feeds, PTC heaters, rear window heaters, start-stop systems, electric brake vacuum pumps applications.
- For different kind of loads, for 24 and 48V power nets
- Continuous load current up to 35A and output voltage up to 60V
- Designed to replace relays and fuses
- Compatible with XMC1100 boot kit
- Compatible with Arduino UNO/DUE
- Quick evaluation of current feedback
- Quick evaluation of protection functions
- Quick evaluation of latch functionality
Product details
| Silicon Manufacturer |
Infineon |
| Kit Application Type |
Power Management - Load Switch |
| Kit Contents |
Evaluation Board BTH50015-1LUA, BTH50030-1LUA |
| SVHC |
No SVHC (25-Jun-2025) |
| Silicon Core Number |
BTH50015-1LUA, BTH50030-1LUA |
| Application Sub Type |
High Side Power Switch |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
BOARDBTH500151LUATOBO1 |
| Quantity |
Each |
| User Manual (472.14KB) EN |
View or download |
