Description
Product Overview

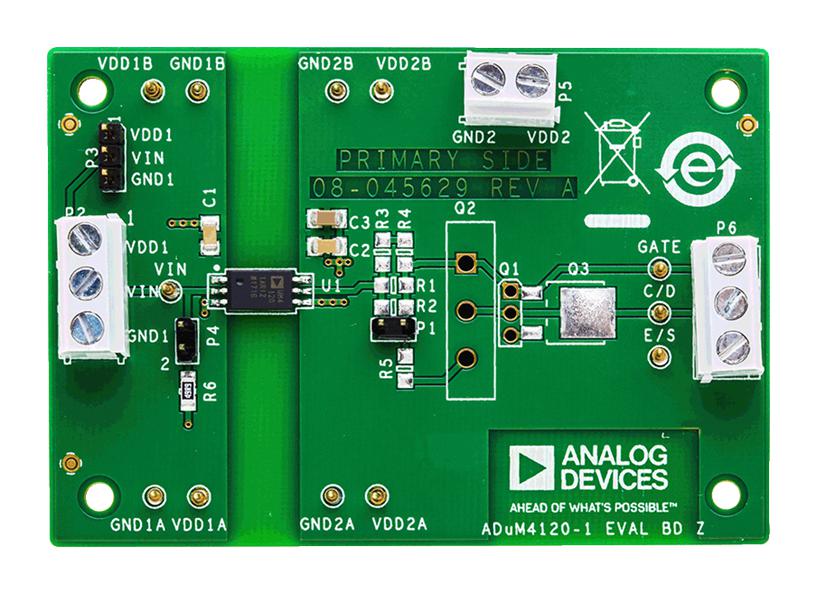

EVAL-ADUM4120EBZ is an evaluation board that supports the ADuM4120 single-channel gate driver with an integrated miller clamp. Analog Devices, Inc., iCoupler® technology provides isolation between the input signal and the output gate driver. The ADuM4120 provides operation with voltages of up to 35 V. The high common-mode transient immunity (CMTI) and robust drive strength makes the ADuM4120 an excellent fit for fast-switching technologies. The EVAL-ADuM4120EBZ evaluation board facilitates testing of the propagation delay, drive strength, and input logic of the device.
- 2A peak drive output capability
- Output power device resistance of <lt/>2ohm
- Low propagation delay of <lt/>51ns
- Operating temperature range from -40°C to +125°C
- Output voltage range to 35V
- Output and input undervoltage lockout (UVLO)
- Pad placement for multiple switch types
- Screw terminals for easy connectivity
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board ADuM4120ARIZ |
| SVHC | No SVHC (07-Jul-2017) |
| Silicon Core Number | ADuM4120ARIZ |
| Application Sub Type | Isolated Precision Gate Driver |
| Product Range | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-ADUM4120EBZ |
| Quantity | Each |
| User Manual (251.87KB) EN | View or download |
| Technical Data Sheet (133.00B) EN | View or download |
