| ₹ 14144.92 includes GST and import duties. | |
| B2B customers can avail ₹ 2157.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

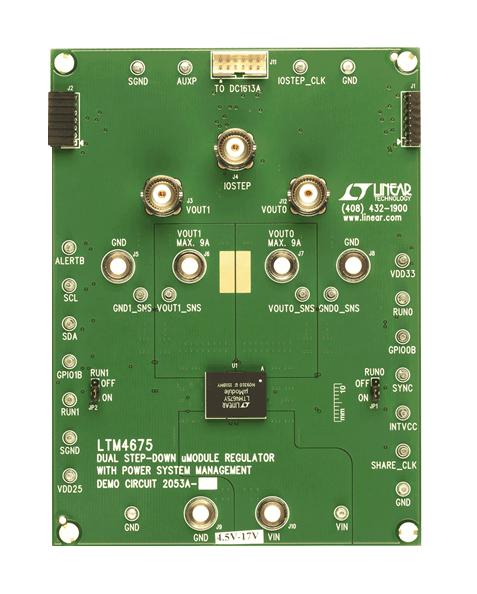

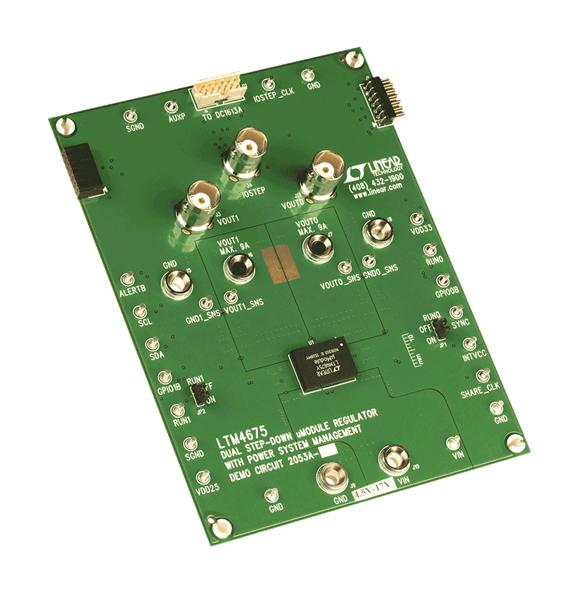

DC2053A demonstration circuit is a dual-output, high efficiency, high density, µModule® regulator. The demo board features the LTM4675 a dual 9A or single 18A step-down regulator with PMBus digital power system management. The DC2053A powers up and regulates its outputs according to the LTM4675's factory-default EEPROM settings. Configuration resistors pin-straps can set device switching frequency and output voltage, if desired. Serial bus communication is not needed to configure or evaluate the LTM4675, facilitating quick set up and easy lab evaluation of the DC/DC converter. To fully explore the extensive DPSM features of the part, install the GUI software LTpowerPlay™ onto your PC and use LTC’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly and store the configuration in the module’s EEPROM, view telemetry of voltage, current, temperature and fault status, and more.
- Operating from a 4.5V to 17V input range
- Each output can supply 9A maximum load current
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Linear Technology |
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Demo Board LTM4675 |
| Automotive Qualification Standard | - |
| Silicon Core Number | LTM4675 |
| Application Sub Type | Step Down DC / DC Regulator |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2053A |
| Quantity | Each |
| Technical Data Sheet (1.60MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13862.02 |
| 3-5 | ₹ 13720.57 |
| 5-10 | ₹ 13437.67 |
| 10+ | ₹ 13154.78 |
Bulk discount will be automatically applied during checkout based on quantity.
