| ₹ 13803.37 includes GST and import duties. | |
| B2B customers can avail ₹ 2105.01 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

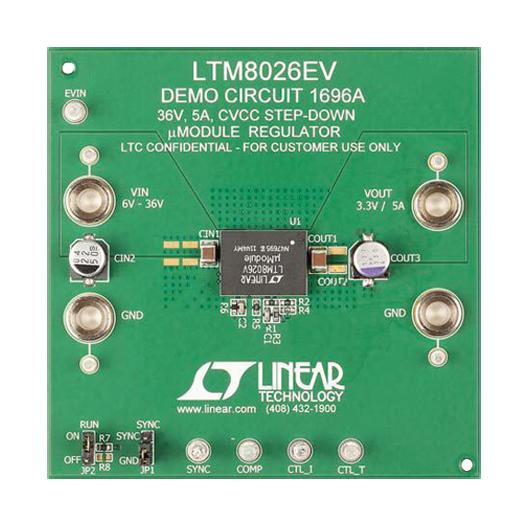

DC1696A demonstration circuit is a 36V, 5A, CVCC step-down μModule regulator featuring the LTM8026. The demo circuit is designed for a 3.3V output from an input voltage range of 6V to 36V. The output can source 5A. The circuit can be operated in either constant voltage mode or constant current mode.
- 550KHz typical switching frequency
- 86% typical efficiency at VIN = 12V, IOUT = 5A
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Linear Technology |
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Demonstration Board LTM8026 |
| Automotive Qualification Standard | - |
| Silicon Core Number | LTM8026 |
| Application Sub Type | Step Down Switching Regulator |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC1696A |
| Quantity | Each |
| Technical Data Sheet (237.18KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13527.3 |
| 3-5 | ₹ 13389.27 |
| 5-10 | ₹ 13113.2 |
| 10+ | ₹ 12837.13 |
Bulk discount will be automatically applied during checkout based on quantity.
