Description
Product Overview

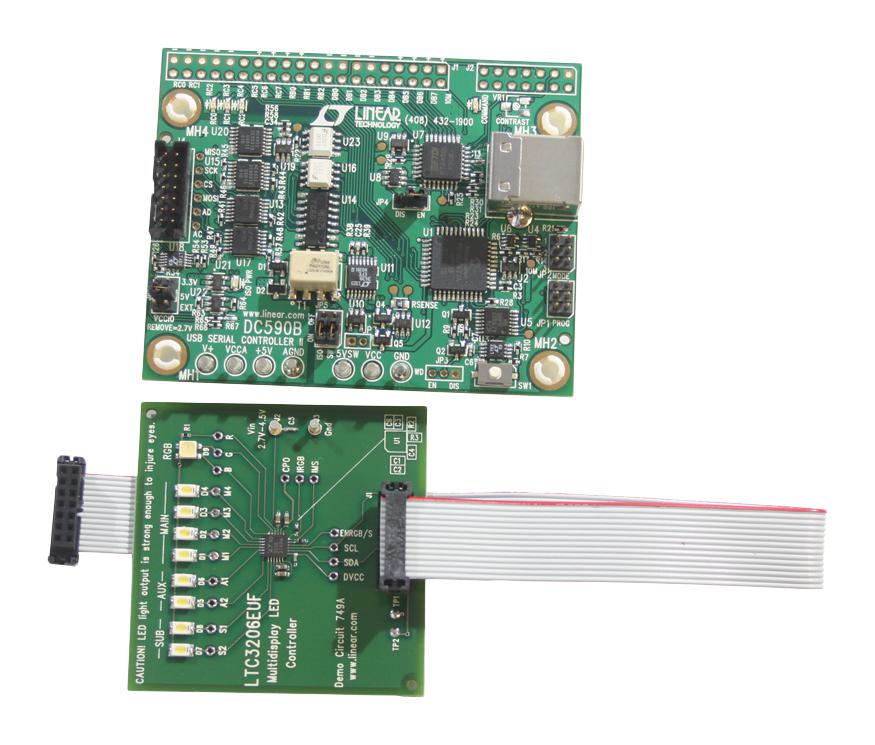

DC749A demonstration circuit is a multi-display LED controller featuring the LTC3206. The LTC3206 is a highly integrated multi-display LED controller. This device contains a high efficiency, low noise fractional step-up/step-down charge pump to provide power for a main and sub white LED display, plus an RGB colour LED display. The LTC3206 requires only four small ceramic capacitors plus two resistors to form a complete 3-panel LED power supply and a current controller. Maximum currents for the main/sub and RGB displays are set independently with a single resistor. Current for each LED is controlled with an internal current source. Dimming control for all displays is achieved via a 2-wire I2C interface. The RGB or Sub panel may be disabled with the ENRGB/S pin. Sixteen dimming states exist for the main panel, sub panel, and the red, green, and blue LEDs resulting in up to 4096 colour combinations.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Device Topology | Buck, Boost |
| Output Current | - |
| Input Voltage Min | 2.7V |
| Core Chip | LTC3206 |
| Kit Contents | Demo Board LTC3206 |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 11Outputs |
| Output Voltage | - |
| Input Voltage Max | 4.5V |
| Dimming Control Type | PWM |
| Product Range | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC749A |
| Quantity | Each |
| Drawing (19.88KB) EN | View or download |
| Operating Instructions (747.71KB) EN | View or download |
