Description
Product Overview
LTM8064IY is a 58V input, 6A constant-voltage, constant-current (CVCC) step-down µModule® (micromodule) regulator. This module includes the switching controller, power switches, an inductor, and the necessary support components. Operating over an input voltage range of 6V to 58V, the LTM8064 supports an output voltage range of 1.2V to 36V. CVCC operation allows the LTM8064 to accurately regulate its output current up to 7A when sourcing and 9.1A when sinking over the entire output range. The output current can be set using a control voltage, a single resistor, or a thermistor. To adjust the switching frequency, simply connect a resistor from the RT pin to ground. Applications include short-circuit protection or accurate output current limit, high-power LED drivers, Peltier drivers, motor drivers, and battery/supercapacitor charging and cell balancing.
- Complete step-down switch mode power supply, CVCC: constant voltage, constant current
- 2-quadrant: sources and sinks output current, programmable soft-start
- Wide input voltage range from 6V to 58V, output voltage range from 1.2V to 36V
- Output DC sourcing current is 6A maximum at (CTRL1, CTRL2 = 1.5V, TA = 25°C)
- Quiescent current into VIN is 0.2µA typical at (VIN = 24V, RUN = 0V, TA = 25°C)
- Output RMS voltage ripple is 10mV typical at (VIN = 24V, IOUT = 4.5A, TA = 25°C)
- Switching frequency is 1000KHz typical at (RT = 40.2K, TA = 25°C)
- Load regulation is 0.5% typical at (VIN = 24V, 0A < IOUT < 6A, TA = 25°C)
- RUN input hysteresis is 185mV typical at (TA = 25°C)
- Internal operating temperature range from -40°C to 125°C, 108-pin BGA package
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Power Supply Applications | - |
| Input Voltage Min | 6V |
| Input Voltage Max | 58V |
| Output Voltage Min | 1.2V |
| Output Voltage Max | 36V |
| No. of Pins | 108Pins |
| DC / DC Converter Output Type | Adjustable |
| Input Voltage DC Max | 58V |
| Switching Frequency | 1MHz |
| Depth | 16mm |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (07-Jul-2017) |
| DC / DC Converter Type | BGA-108, Micro Module |
| Output Power Max | - |
| No. of Outputs | 1 Output |
| DC / DC Converter IC Case | BGA |
| Output Current Max | 6A |
| Output Current | 6A |
| Input Voltage DC Min | 6V |
| Height | 4.92mm |
| Topology | Buck (Step Down) |
| Width | 11.9mm |
| Product Range | LTM8064 Series |
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTM8064IY |
| Quantity | Each |
| Technical Data Sheet (2.61MB) EN | View or download |

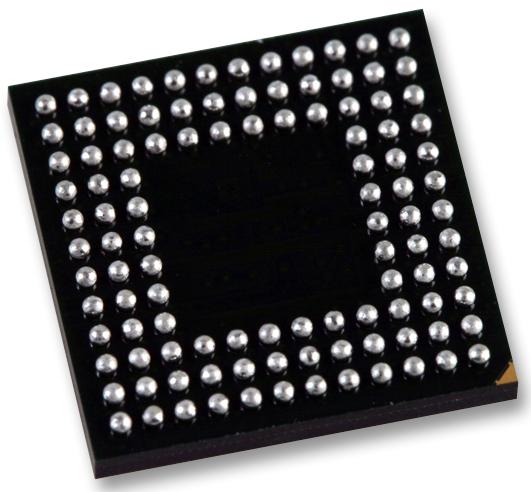

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
