Product Overview

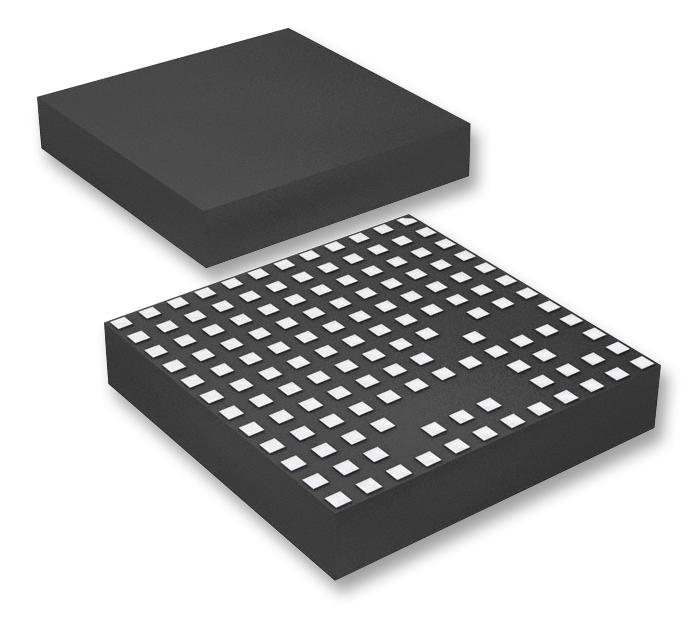

LTM4612MPV#PBF is a EN55022 Class B certified high voltage input and output, 5A switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 5V to 36V, the LTM4612 supports an output voltage range of 3.3V to 15V, set by a single resistor. Only bulk input and output capacitors are needed to finish the design. High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability. The onboard input filter and noise cancellation circuits achieve low noise coupling, thus effectively reducing the electromagnetic interference (EMI). Applications include telecom and networking equipment, industrial and avionic equipment, RF systems.
- Complete low EMI switch mode power supply, EN55022 Class B compliant
- Wide input voltage range from 5V to 36V, output voltage range from 3.3V to 15V
- Low input and output referred noise, output voltage tracking and margining
- Power good tracks with margining, PLL frequency synchronization, ±1.5% set point accuracy
- Current foldback protection (disabled at start-up), parallel/current sharing
- Ultrafast transient response, current mode control, programmable soft-start
- Output overvoltage protection, input supply current is 1.85A typ at (VIN = 36V, VOUT = 12V)
- Output current limit is 9A typ at (COUT = 200µF, VIN = 36V, VOUT = 12V)
- Minimum on-time is 50ns typical at (TA = 25°C)
- Storage temperature range from -55°C to 125°C, 133-lead BGA package
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Power Supply Applications | ITE & Industrial |
| DC / DC Converter Type | LGA-133, Micro Module |
| Input Voltage Max | 36V |
| No. of Outputs | 1 Output |
| DC / DC Converter IC Case | LGA |
| Output Current Max | 5A |
| DC / DC Converter Output Type | Adjustable |
| Input Voltage DC Max | 36V |
| Height | 2.8mm |
| Depth | 15mm |
| Width | 15mm |
| SVHC | No SVHC (04-Feb-2026) |
| Input Voltage Min | 5V |
| Output Power Max | - |
| Output Voltage Min | 3.3V |
| Output Voltage Max | 15V |
| No. of Pins | 133Pins |
| Output Current | 5A |
| Input Voltage DC Min | 5V |
| Switching Frequency | 940kHz |
| Topology | Buck (Step Down) |
| Operating Temperature Max | 125°C |
| Product Range | LTM4612 Series |
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTM4612MPV#PBF |
| Quantity | Each |
| Technical Data Sheet (1.07MB) EN | View or download |
