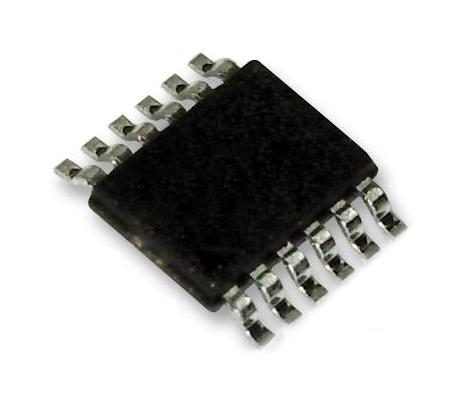

ANALOG DEVICES LT3015IMSE-3.3#PBF LDO Voltage Regulator, Fixed, -1.8 to -30V in, 310mV Drop, -3.3V/1.5A Out, MSOP-EP-12, -40 to 125 °C

LT3015IMSE-3.3#PBF LT®3015 series low noise, low dropout, negative linear regulator with fast transient response. This device can supply up to 1.5A of output current with a typical dropout voltage of 310mV. Its operating quiescent current is typically 1.1mA and drops to less than 1µA in shutdown. Quiescent current is also well-controlled during dropout. In addition to its fast transient response, the LT3015 series exhibits very low output noise, making it ideal for noise-sensitive applications. This regulator remains stable with a minimum 10µF output capacitor. Furthermore, it can utilize small ceramic capacitors without the need for additional equivalent series resistance (ESR), as required by many other regulators. Applications include post-regulator for switching supplies, negative logic supplies, low noise instrumentation, industrial supplies, negative complement to the LT1963A.

• Wide input voltage range from -1.8V to -30V, fast transient response
• Controlled quiescent current in dropout, stable with 10µF output capacitor
• Stable with ceramic, tantalum or aluminium capacitors
• Thermal limit with hysteresis, reverse output protection
• Regulated output voltage of -3.3V at VIN = –3.8V, ILOAD = –1mA, TA = 25°C
• Quiescent current in shutdown is 0.01µA typical at (VIN = -6V, active-low VSHDN = 0V)
• Output voltage noise is 60µVRMS typical at (COUT = 10µF, ILOAD = -1.5A, BW = 10Hz to 100KHz)
• Ripple rejection is 61dB typical at (VIN = -4.8V (avg), TA = 25°C)
• GND pin current is 1.1mA typical at (ILOAD = 0mA)
• Operating temperature range from -40°C to 125°C, 12-lead plastic MSOP package
