Product Overview

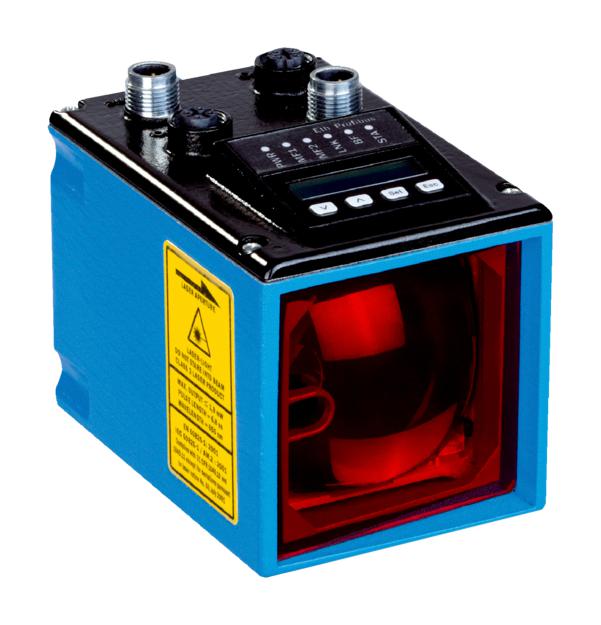

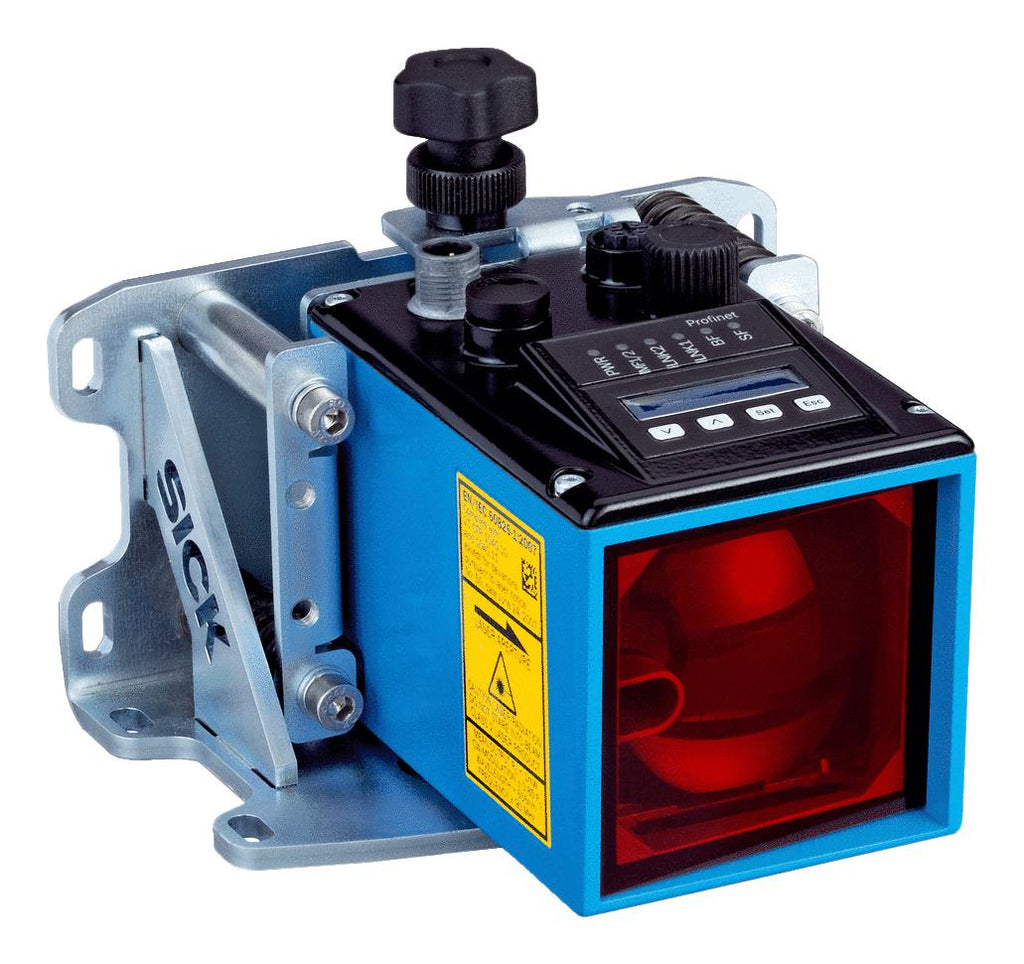

DL100-21AA2112 is a high-performance laser distance sensor that uses advanced phase-shift measurement technology, optimized in collaboration with drive manufacturers for seamless integration into closed-loop control systems. Its compact metal housing, innovative 3-axis mounting bracket, and intelligent quick-lock connector system ensure easy installation, reliable operation, and reduced ownership costs. It is ideal for ASRS stacker crane positioning (X/Y), transfer car positioning, AGV navigation, indoor crane anti-collision, and trolley positioning.
- Display with intuitive menu navigation and clear status LEDs
- Small, rugged metal housing
- Elongated holes for zero point adjustment when replacing devices
- PROFINET communication interface
- Measuring range from 0.15m to 100m, on “diamond grade” reflective tape
- 0.5mm repeatability
- Accuracy of ±2mm (from 150mm to 180mm measuring range the accuracy can reach ±4mm)
- Digital output: 2 x push-pull: PNP/NPN
- Fixed modulation frequency
Product details
| Sensor Type |
Long Range Distance Sensor |
| Sensing Distance Max |
100m |
| Supply Voltage DC Min |
18V |
| Output Type |
NPN / PNP, Push Pull |
| Product Range |
Dx100 Series |
| Supply Voltage Min |
18VDC |
| Light Source |
Red Laser |
| IP Rating |
IP65 |
| Operating Temperature Max |
75°C |
| Sensing Range Max |
100m |
| Sensing Method |
Reflective |
| Sensor Output Type |
NPN / PNP, Push Pull |
| Supply Voltage DC Max |
30V |
| Connection Method |
M12 Connector |
| Supply Voltage Max |
30VDC |
| Qualification |
- |
| Operating Temperature Min |
-20°C |
| SVHC |
No SVHC (04-Feb-2026) |
