Product Overview

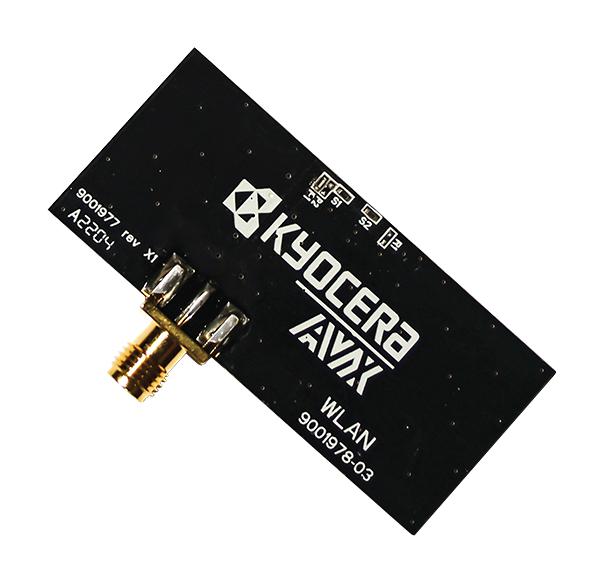

9001978-03 is a Wi-Fi dual band chip antenna demo board. This antenna designed for Wi-Fi applications exhibits high efficiency in a small footprint and delivers the key needs to the device engineers for higher functionality and better performance in a smaller and thinner design. Typical applications include embedded design, cellular, headsets, tablets, gateway access points, handheld, telematics, tracking, healthcare, M2M, industrial devices, smart grid and OBD-II.
- Frequency range from 2400 to 2485MHz and 5150 to 5850MHz
- Linear polarization
- 0.5watt CW power handling
- Greater flexibility with unique form factors
- Quicker time-to-market
- PCB dimension is 55 x 25 x 0.8mm
- Higher functionality and performance in smaller/thinner designs
Product details
| Board Type |
Demo Board |
| Application Sub Type |
Chip Antenna |
| Product Range |
- |
| IC Function |
Wi-Fi Dual Band Antenna |
| Kit Contents |
Demo Board 9001978 |
| SVHC |
No SVHC (17-Dec-2015) |
Other details
| Brand |
KYOCERA AVX |
| Part Number |
9001978-03 |
| Quantity |
Each |
| Technical Data Sheet (2.20MB) EN |
View or download |
