Product Overview

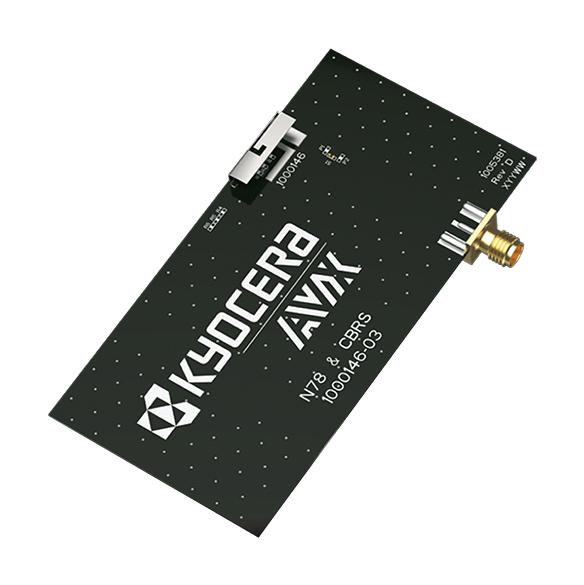

1000146-03 is a demo board for CBRS/n78 stamped metal embedded antenna. This stamped metal series of Isolated Magnetic Dipole™ (IMD) antenna delivers on the key needs of device designers for higher functionality and performance in smaller/thinner designs. The first-in-class IMD technology enables you to develop concept designs that are more advanced and that deliver superior performance in reception critical applications. Typical applications include embedded design, Cellular, headsets and tablets, gateway access point, handheld, telematics, tracking, healthcare, M2M, industrial devices, smart grid and OBD-II.
- PCB dimension is 125 x 45mm
- Stay-in-tune
- Quicker time-to-market
Product details
| Board Type |
Demo Board |
| Application Sub Type |
Embedded Antenna |
| Product Range |
- |
| IC Function |
RF Antenna |
| Kit Contents |
Demo Board 1000146 |
| SVHC |
No SVHC (17-Dec-2015) |
Other details
| Brand |
KYOCERA AVX |
| Part Number |
1000146-03 |
| Quantity |
Each |
| Technical Data Sheet (3.02MB) EN |
View or download |
