Product Overview
Also known as
1072592
Product details
| Sensing Range Max |
4mm |
| Operating Temperature Max |
100°C |
| Sensing Distance Min |
- |
| Sensor Output Type |
PNP / SPST-NO |
| Supply Voltage DC Min |
10V |
| Supply Voltage DC Max |
30V |
| Sensor Terminals |
3 Pin M8 Connector |
| IP Rating |
IP68, IP69K |
| Product Range |
IMB Series |
| Sensor Type |

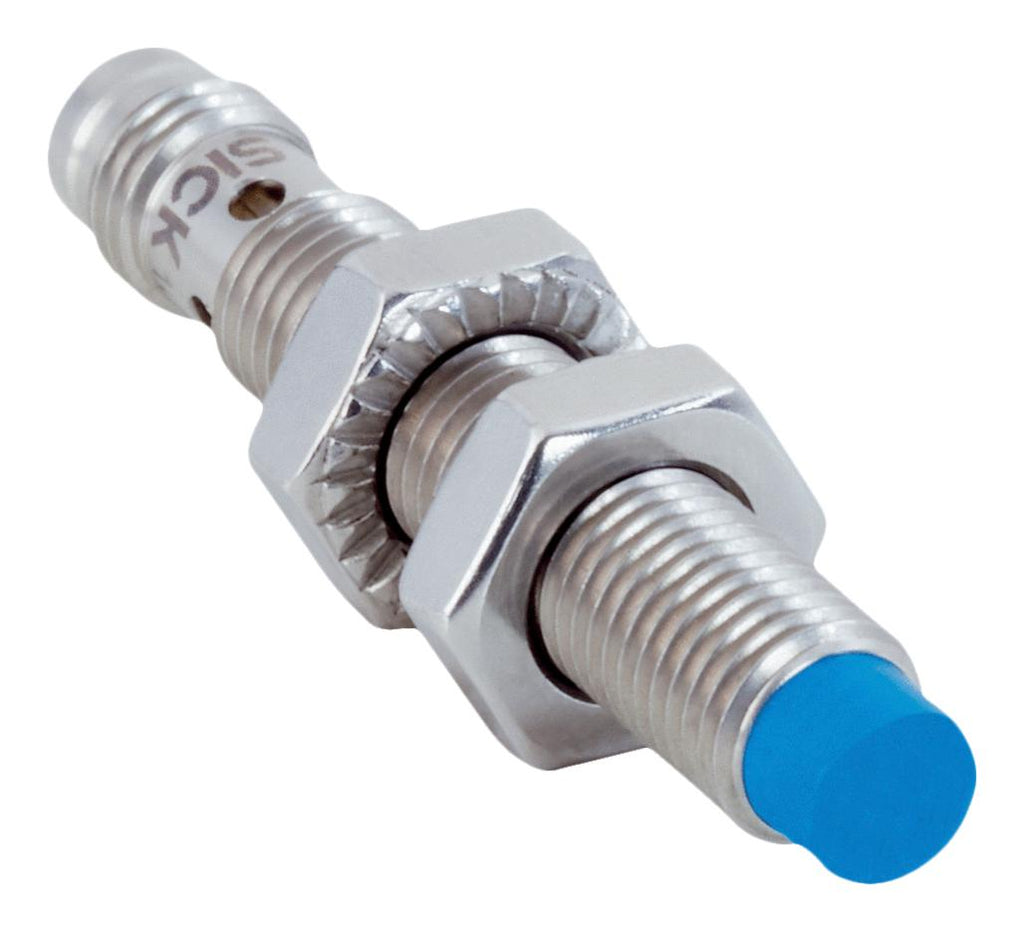

Inductive Proximity Sensor |
| Thread Size - Metric |
M8 x 1 |
| Sensing Distance Max |
- |
| Sensing Distance Nom |
4mm |
| Supply Voltage Min |
10VDC |
| Supply Voltage Max |
30VDC |
| Sensor Case / Package |
Cylindrical M8 Thread |
| Sensor Body Material |
Stainless Steel |
| Operating Temperature Min |
-40°C |
| SVHC |
No SVHC (04-Feb-2026) |
