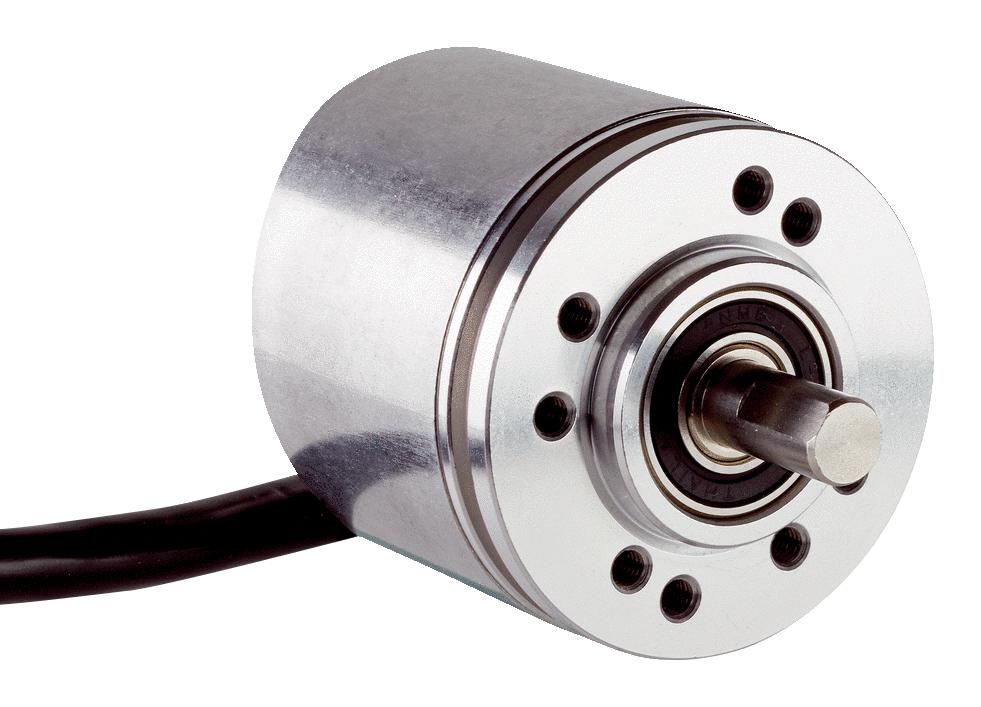

Product Overview
Also known as
1064378
Product details
| Encoder Technology |
Mechanical |
| Encoder Resolution |
600PPR |
| Orientation |
Horizontal |
| Encoder Output |
TTL / RS422, HTL / Push Pull |
| Product Range |
DBS36 Series |
| Rotational Life Cycles |
2000000000 |
| Shaft Type |
Solid Shaft |
| Shaft Diameter |
6mm |
| Supply Voltage Max |
30V |
| Operating Temperature Max |
85°C |
| Termination |
Cable |
| Encoder Type |
Incremental |
| No. of Detents |
- |
| Push Switch |
- |
| Encoder Mounting |
Flange Mount |
| Rotational Speed Max |
8000rpm |
| No. of Channels |
6Channels |
| Shaft Length |
12mm |
| Supply Voltage Min |
7V |
| Operating Temperature Min |
-20°C |
| IP Rating |
IP65 |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
