Description
Product Overview

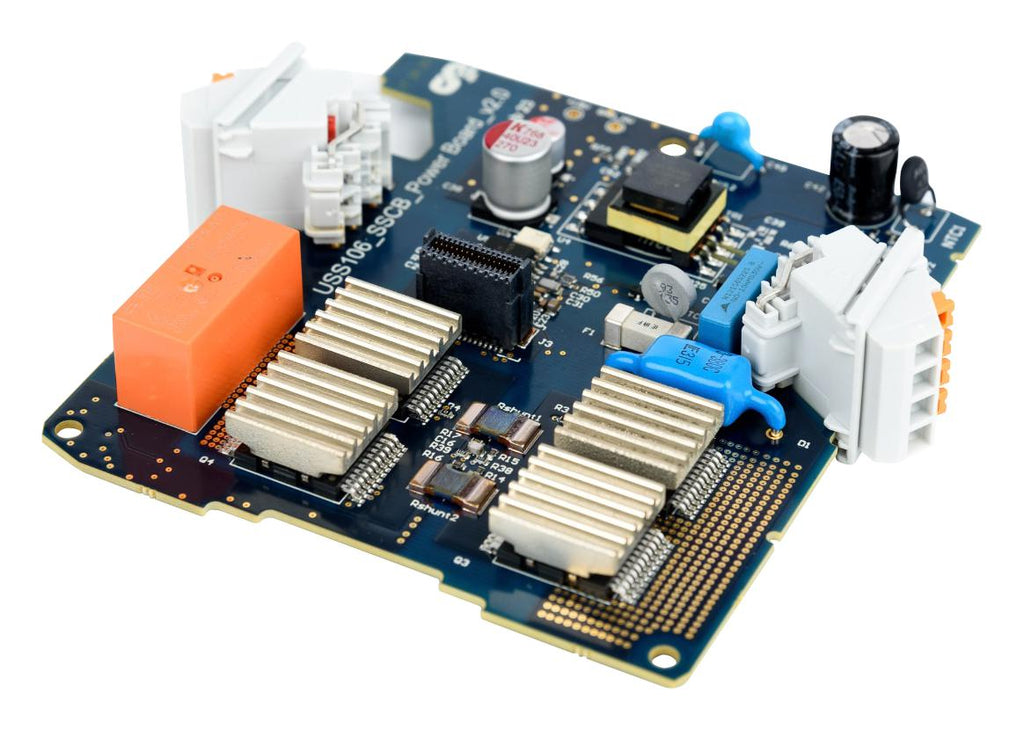

REFSSCBACDC1PH16ATOBO1 is an efficient kit for AC-DC solid state circuit breaker evaluation. This solid-state circuit breaker (SSCB) kit that helps to quickly evaluate AC and DC-type circuit breakers with an interactive GUI. Fully featured with two boards, this kit supports 230VAC or 350VDC operation and 16A nominal current. It can support different SSCB topologies like 1 P - N, 3 P - N (stacked, cascaded), L+ - L-. It supports passive cooling with non-isolated integrated coolers mounted over top-side cooling (TSC) MOSFET packages. Typical applications include industrial automation and solid-state circuit breaker.
- Bidirectional MOSFET switch
- Mechanical switch for physical air gap and evaluate AC & DC type circuit breakers
- Overload and overcurrent protection
- DC measurements: I, U, P
- AC measurements: I, U, P, Q, S, THDi, PF
- No FuSa or state-of-health diagnostics
- S7T integrated temp.sensor/NTC interface and interactive GUI
- Shunt based overcurrent detection and ports: CAN, UART, Inhibit IO
- Non-isolated integrated coolers
- Top-side-cooling MOSFET and passive cooling
Contents
SSCB logic and power boards, Demo GUI, USB to CAN analyser 114991193, 24V/1A adapter VER24US240.
Product details
| Silicon Manufacturer | - |
| Kit Application Type | Power Management |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | - |
| Application Sub Type | Solid-State Circuit Breaker |
| Core Sub-Architecture | - |
| Kit Contents | SSCB Logic and Power Boards, Demo GUI, USB to CAN Analyzer 114991193, 24V/1A Adapter VER24US240 |
| SVHC | No SVHC (27-Jun-2018) |
Other details
| Brand | INFINEON |
| Part Number | REFSSCBACDC1PH16ATOBO1 |
| Quantity | Each |
| Technical Data Sheet (2.35MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 324555.6 |
| 3-5 | ₹ 321243.8 |
| 5-10 | ₹ 314620.22 |
| 10+ | ₹ 307996.64 |
Bulk discount will be automatically applied during checkout based on quantity.
