Product Overview

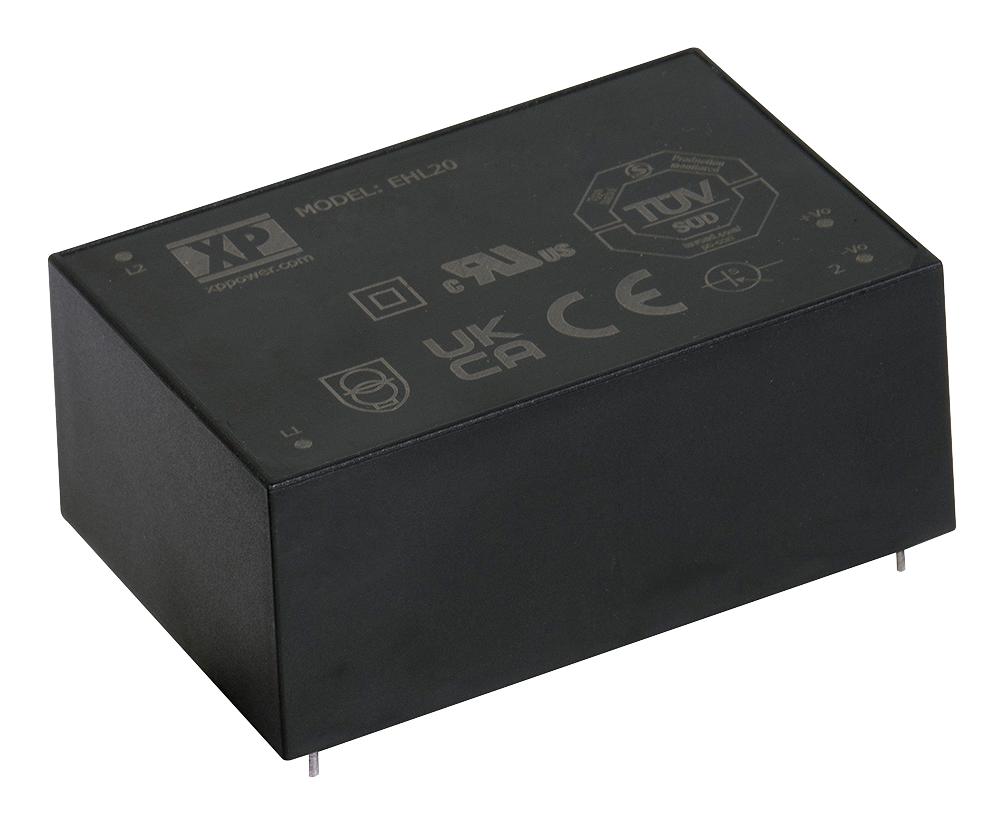

EHL20US24 is an EHL20 series PCB mount single output AC to DC power supply. This high power-density power supply features a wide 85-528VAC input, specifically designed for phase-to-phase operation in a 480VAC system. The EHL20 series also offers OVC III compliance, Class II construction, worldwide industrial and household safety approvals, making it suitable for a wide range of industrial applications and control systems in commercial and residential buildings. Applications includes industrial electronics & robotics, security, 3 phase power supplies.
- 24VDC output voltage, 0.83A output current, 20W output power
- 88% typical efficiency at 230VAC and full load
- Phase to neutral or phase to phase operation
- IEC Class II construction
- Industrial and household safety approvals
- Operating temperature range from -25°C to +70°C
- Encapsulated version, 69.9 x 47.0 x 29.2mm dimension
- IEC62368-1, EN62368-1, UL62368-1, IEC60335-1 safety approvals
- Overvoltage protection, overload protection, short circuit protection
- 4000VAC input to output isolation, 80KHz maximum switching frequency
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Output Power Max |
20W |
| Output Current - Output 1 |
830mA |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
85V AC to 528V AC |
| Height |
29.2mm |
| Product Range |
EHL20 Series |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24VDC |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Width |
47mm |
| Depth |
69.9mm |
| SVHC |
No SVHC (23-Jan-2024) |
