Description
Product Overview

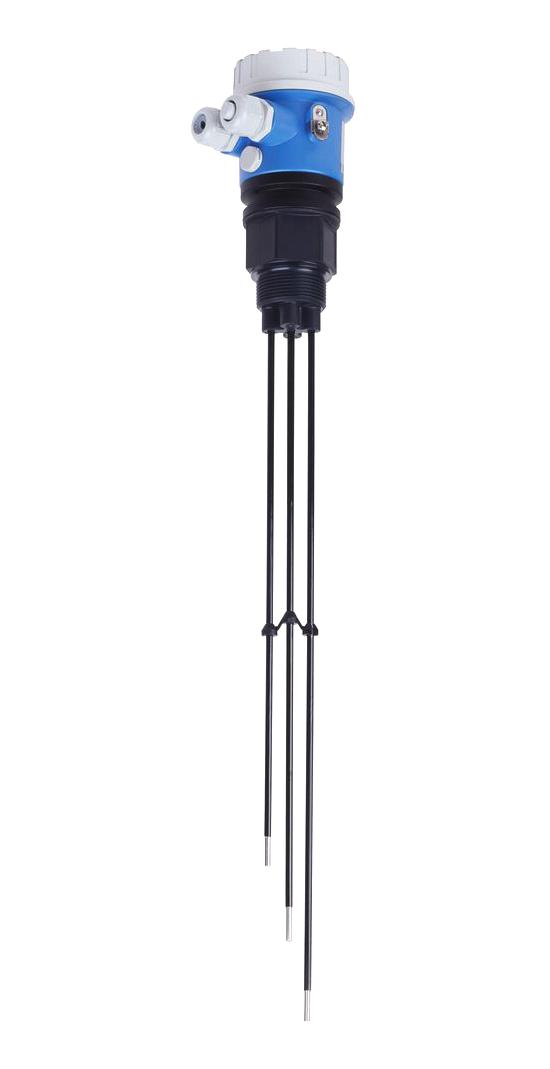

FTW31-A1A2CA0A is a Liquipoint T FTW31 series, point level switch for multiple point detection in conductive liquids. It is used for point level measurement in conductive liquids (from 10µS/cm). Depending on the number of measuring points (up to 5 rods or ropes), measuring tasks such as overfill protection, dry running protection, two-point control of pumps or multiple point detection can be implemented.
- Cost-effective probe for conductive liquids with detection of up to five point levels with one probe
- No calibration required, standard setting for the most common conductive liquids
- No moving parts in the tank - long service life, reliable operation with no wear or blockages
- Two-point control and additional MAX and MIN detection
- Long service life, reliable operation with no wear or blockages
- WHG approval, easy adaptation to different conductivities
- Non-hazardous area approval, thread ISO228 G1-1/2, PPS (process connection)
- 2x rod, 316L (sensing point)
- Gland M20 cable entry, 1000N maximum tensile strength
- Ambient temperature range from -40°C to 70°C
Notes
This product comes with 5-year warranty.
Product details
| Level Switch Type | Point Level Switch |
| Process Connection Type | G1-1/2 |
| Housing Material | PPS (Polyphenylene Sulfide) |
| Electrical Connection | Cable |
| Supply Voltage Max | - |
| Operating Temperature Max | 70°C |
| SVHC | To Be Advised |
| Media Type | Liquid |
| Operating Pressure Max | 10bar |
| Switch Output | - |
| Supply Voltage Min | - |
| Operating Temperature Min | -40°C |
| Product Range | Liquipoint T FTW31 Series |
Other details
| Brand | ENDRESS+HAUSER |
| Part Number | FTW31-A1A2CA0A |
| Quantity | Each |
| CAD Altium_Designer (91.04KB) EN | View or download |
| CAD Multiple Formats (35.52KB) EN | View or download |
| Manufacturer Catalogue (386.89KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
