Description
Product Overview

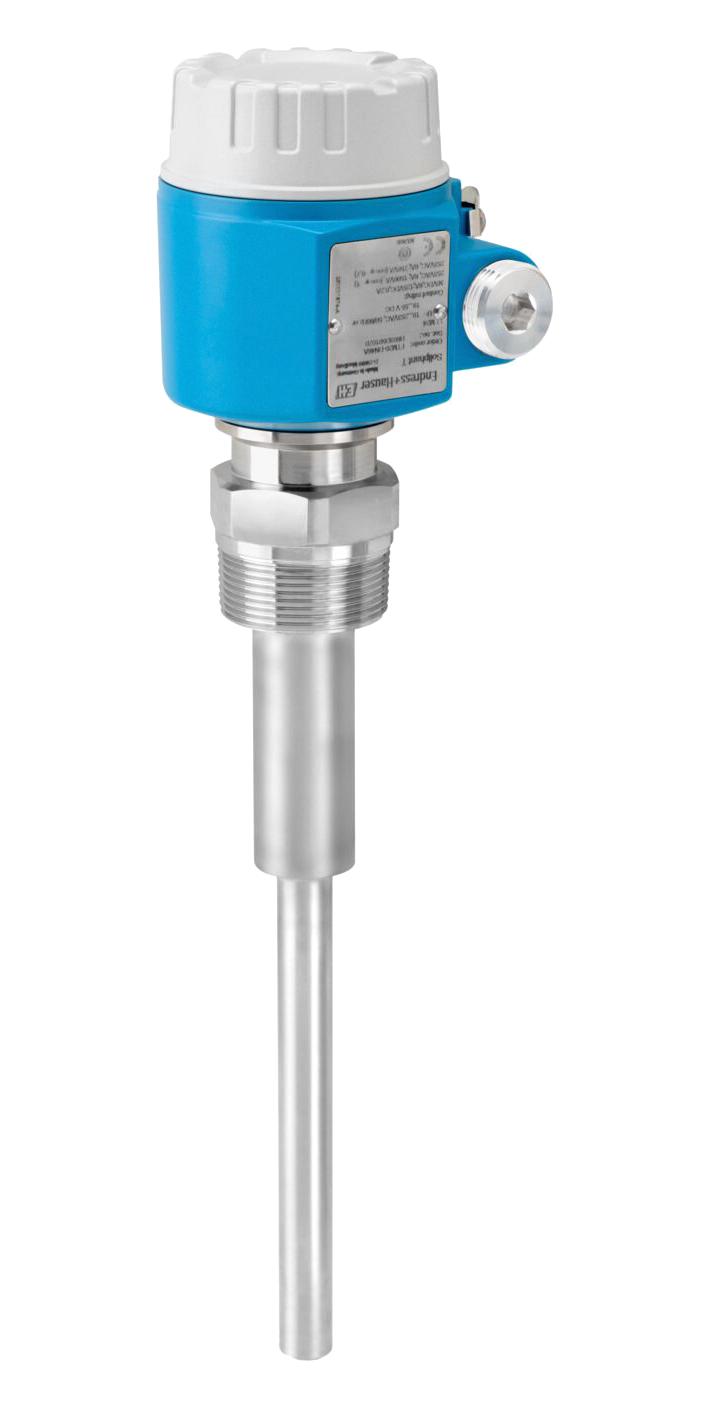

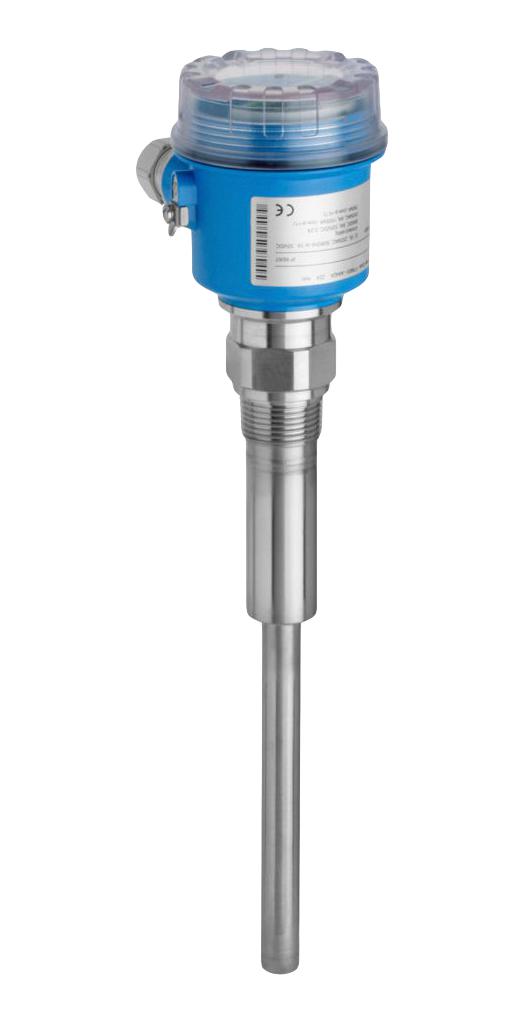

FTM20-4G25A is a vibronic point level detection Soliphant FTM20, compact limit switch with an extension tube for bulk solids with stainless steel housing (316L). This point-level switch is for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs mean the device has a wide range of applications. It features operational safety, reliability, and universal applicability through the use of the tuning fork-measuring principle. Measurement is unaffected by conductivity, build-up, turbulence, flows, or air bubbles.
- Simple and fast commissioning, no calibration required
- No mechanically moved parts, free of maintenance
- Safe function due to self-monitoring (active frequency monitoring of the fork)
- Easy recurring function test via test magnet, suitable for constricted space due to compact design
- Measurement not affected by build-up or external vibration, not affected by flow noises
- ATEX II 1/2D Ex t IIIC Da/Db approval, thread EN10226 R1-1/2, 316L (process connection)
- 225mm sensor length
- ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC certificates / approvals
- 200g/l minimum density of medium, international explosion protection certificates
- Process temperature range from -40°C to 150°C
Notes
This product comes with 5-year warranty.
Product details
| Level Switch Type | Point Level Switch |
| Process Connection Type | R1-1/2 |
| Housing Material | Aluminium |
| Electrical Connection | M12 Connector |
| Supply Voltage Max | 45VDC |
| Operating Temperature Max | 150°C |
| SVHC | To Be Advised |
| Media Type | Solid |
| Operating Pressure Max | 25bar |
| Switch Output | 3-Wire / PNP |
| Supply Voltage Min | 10VDC |
| Operating Temperature Min | -40°C |
| Product Range | Soliphant T FTM20 Series |
Other details
| Brand | ENDRESS+HAUSER |
| Part Number | FTM20-4G25A |
| Quantity | Each |
| CAD Altium_Designer (69.36KB) EN | View or download |
| Technical Data Sheet (98.33KB) EN | View or download |
| CAD Multiple Formats (54.02KB) EN | View or download |
