Description
Product Overview

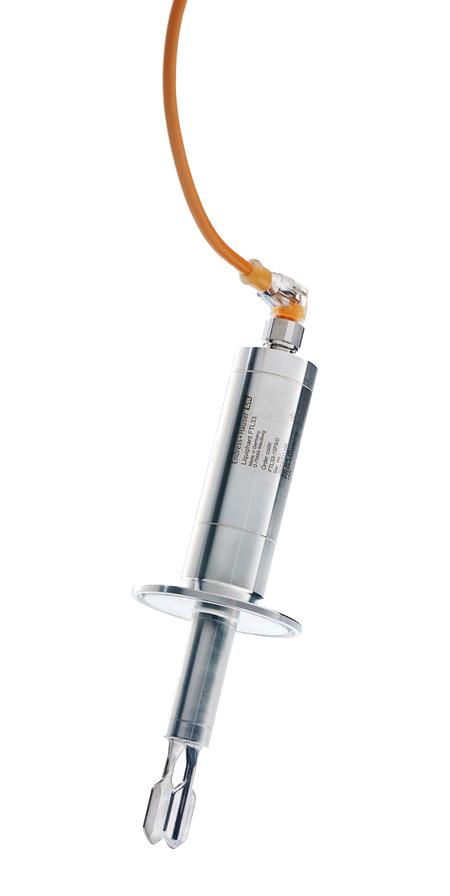

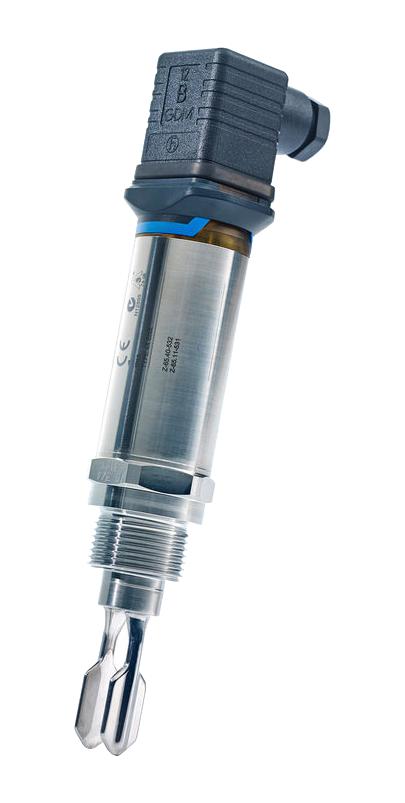

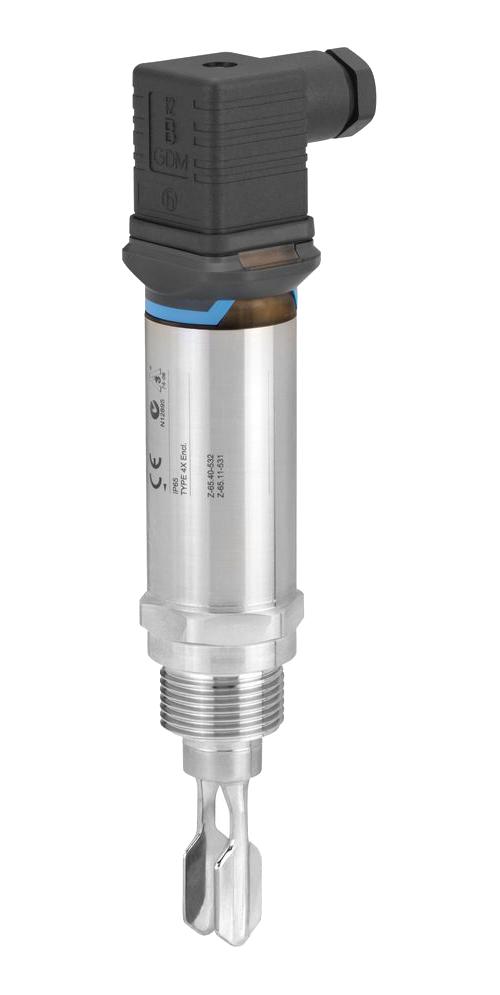

FTL33-AA4M2AB3CJ is a Liquiphant FTL33, point level switch for universal use in all liquids. It is used preferably in storage tanks, mixing vessels and pipes, where the internal and external hygiene requirements are particularly stringent. Ideal for applications in which float switches or conductive, capacitance and optical sensors have been used up to now. The Liquiphant FTL33 also works in areas where these measuring principles are not suitable due to conductivity, buildup, turbulence, flow conditions or air bubbles.
- Non-hazardous area approval, 10 to 30VDC, 3-wire PNP output power supply
- Plug M12, IP65/67 NEMA Type 4X enclosure (electrical connection)
- Maximum process temperature is 100°C (sensor design)
- Compact version 316L Ra less than 1.5um/59uin (sensor type)
- Tri-clamp ISO2852 DN25-38 (1..1-1/2"), 316L, DIN32676 DN25-40 (process connection)
- 3-A and EHEDG certificates, all-metal separation, no plastics in the process
- External function test with test magnet, onsite function check possible thanks to LED indication
- Compact design for easy installation even in confined conditions or hard-to-access areas
- Process temperature range from -40°C to 150°C
Notes
This product comes with 5-year warranty.
Product details
| Level Switch Type | Point Level Switch |
| Process Connection Type | 1-1/2" Tri-Clamp |
| Housing Material | 316L Stainless Steel |
| Electrical Connection | M12 Connector |
| Supply Voltage Max | 30VDC |
| Operating Temperature Max | 70°C |
| SVHC | To Be Advised |
| Media Type | Liquid |
| Operating Pressure Max | 40bar |
| Switch Output | 3-Wire / PNP |
| Supply Voltage Min | 10VDC |
| Operating Temperature Min | -40°C |
| Product Range | Liquiphant FTL33 Series |
Other details
| Brand | ENDRESS+HAUSER |
| Part Number | FTL33-AA4M2AB3CJ |
| Quantity | Each |
| Technical Data Sheet (1.27MB) EN | View or download |
| CAD Altium_Designer (39.47KB) EN | View or download |
| CAD Multiple Formats (28.46KB) EN | View or download |
