Description
Product Overview

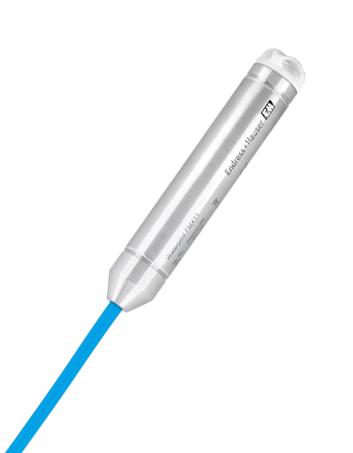

FMX11-CA11GS20 is a Waterpilot FMX11 series, pressure sensor for hydrostatic level measurement in freshwater applications. It is used in level measurement in groundwater wells suitable for narrow 1" pipes, surface water monitoring in rivers and lakes and level monitoring in the extraction of drinking water, e.g., in water towers. The compact size 22mm makes this an excellent choice for applications in boreholes and small-diameter stilling wells. It is flexible and used in fresh water applications thanks to the very compact design and materials that are suitable for drinking water.
- Easy and quick to install and commission
- Simple and reliable transmitter for various drinking water applications
- Robust construction for durable long-term services
- Hydrostatic pressure measuring principle
- Non-hazardous area + C/US ordinary location, UK marking approval
- 4 to 20mA output current, supply voltage range from 8 to 28VDC
- 600mbar/60kPa/9psi gauge, 6mH2O/20ftH2O/240inH2O (sensor range)
- 20m cable probe connection, long term stability is 0.1% of URL/year
- Ambient temperature range from -10°C to +70°C
Notes
This product comes with 5-year warranty.
Product details
| Process Connection Type | Clamp |
| Pressure Measurement Type | Absolute |
| Voltage Rating | 28VDC |
| Output Interface | - |
| Housing Material | 316L Stainless Steel |
| Supply Voltage Min | 0 |
| Operating Temperature Min | -10°C |
| Product Range | Waterpilot FMX11 Series |
| Operating Pressure Max | 600mbar |
| Accuracy | ± 0.35% |
| Sensor Output Type | Analogue |
| Supply Current | 22mA |
| Electrical Connection | Cable |
| Supply Voltage Max | 28VDC |
| Operating Temperature Max | 70°C |
| SVHC | To Be Advised |
Other details
| Brand | ENDRESS+HAUSER |
| Part Number | FMX11-CA11GS20 |
| Quantity | Each |
| Technical Data Sheet (594.89KB) EN | View or download |
