Product Overview
43.61.9.024.4300 is a 43 series, low profile PCB relay. It is used in applications such as medical and dentistry, alarm systems, air conditioners, burners, boilers and furnaces, electric and electronic toys and games, door and gate openers, electronic circuit boards, vending machines.
- PCB - 5mm pinning type
- 1-pole, DC coil
- Nominal coil voltage is 24VDC
- AgSnO₂ contact material
- NO (SPST) contact circuit
- 10A rated current, 15A maximum peak current
- 250VAC rated voltage, 400VAC maximum switching voltage
- 300mW minimum switching load
- 1000VAC dielectric strength between open contact
- Ambient temperature range from -40°C to +85°C
Product details
| Contact Configuration |
SPST-NO |
| Contact Current |
16A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Coil Resistance |
1.4kohm |
| Coil Voltage |
24VDC |
| Product Range |
43 Series |
| Coil Type |
DC |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Tin Oxide |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
FINDER |
| Part Number |
43.61.9.024.4300 |
| Quantity |
Each |
| Technical Data Sheet (1.44MB) EN |
View or download |

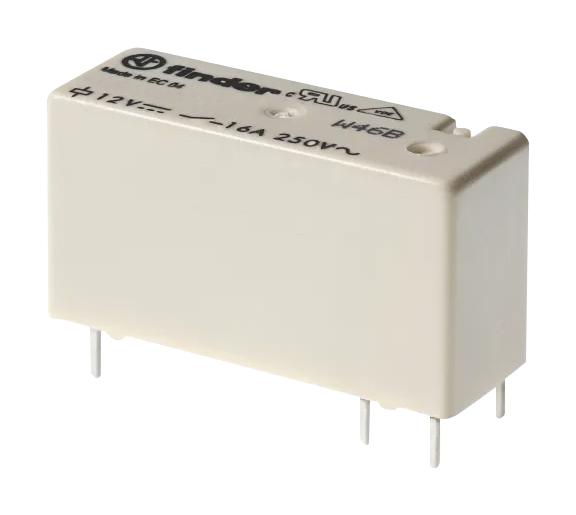

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
