Product Overview

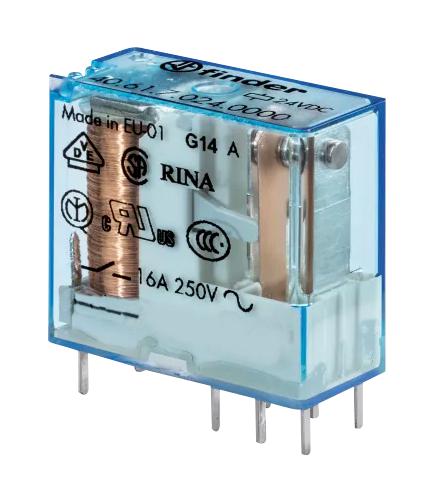

40.61.7.024.4000 is a 40 series, miniature PCB relay. It is used in applications such as medical and dentistry, control panels, panels for electrical distribution, toys, automation for blinds, grilles and shutters, door and gate openers, electronic circuit boards, vending machines.
- Meets EN 60335-1 glow wire requirements
- PCB/plug-in - 5mm pinning type
- 1-pole, sensitive DC, 0.5W
- Nominal coil voltage is 24VDC
- AgNi contact material
- CO (nPDT) contact circuit
- Pin length 5.3mm (plug-in relays)
- 16A rated current, 30A maximum peak current
- 250VAC rated voltage, 400VAC maximum switching voltage
- Ambient temperature range from -40°C to 85°C
Product details
| Contact Configuration |
SPDT |
| Contact Current |
16A |
| Relay Mounting |
Socket |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Coil Resistance |
1.15kohm |
| Coil Voltage |
24VDC |
| Product Range |
40 Series |
| Coil Type |
DC Sensitive |
| Relay Terminals |
Plug In |
| Contact Material |
Silver Tin Oxide |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
FINDER |
| Part Number |
40.61.7.024.4000 |
| Quantity |
Each |
| Technical Data Sheet (3.90MB) EN |
View or download |
