Product Overview

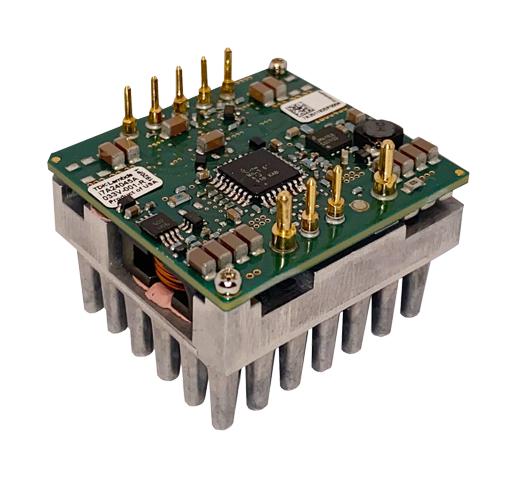

I7A24045A033V-0F1-R is an i7A series 750W non-isolated DC to DC step-down converter. The highly efficient i7A series has low ripple, excellent dynamic response under sudden load changes, accepts a wide DC input with a wide output adjustment range.
- Input voltage range from 18 to 32VDC
- Output voltage is adjustable from 3.3 to 18VDC
- Maximum current is 45A
- Negative logic on/off, integrated heatsink, 1/16th brick footprint
- Low component count with minimal external components
- High power density, less board area needed
- Minimal derating requirements in low airflow environments
- Longer battery life / less power consumed
- 34 x 36.8 x 24.9mm size
- 3 years warranty
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
750W |
| Output Voltage Max |
18V |
| DC / DC Converter Output Type |
Adjustable |
| Input Voltage DC Max |
32V |
| Depth |
36.83mm |
| Product Range |
i7A Series |
| DC / DC Converter Type |
Sixteenth Brick |
| Output Voltage Min |
3.3V |
| Output Current Max |
45A |
| Input Voltage DC Min |
18V |
| Height |
24.9mm |
| Width |
34.04mm |
| SVHC |
No SVHC (15-Jan-2018) |
