Product Overview

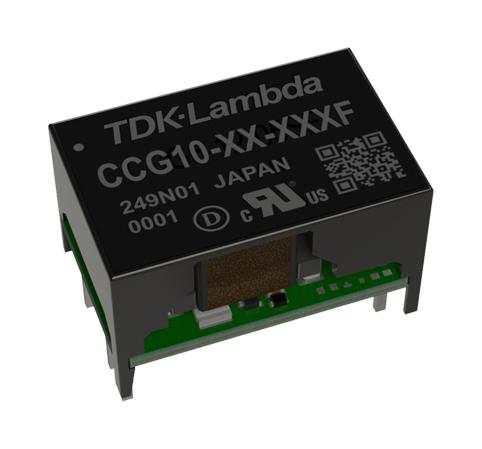

CCG10-24-12DF is a space saving CCG10 series isolated DC to DC converter. The CCG can operate in ambient temperatures of up to -40 to +90°C and have an input to output isolation of 1,500VDC.
- Input voltage range from 9 to 36VDC
- Output voltage is ±12VDC
- Through hole mounting
- Output current is ±420mA
- Non-conductive black plastic case, remote on-off control, switching frequency is 400KHz
- Wide 4:1 input range
- Certified to IEC62368-1
- No silicone potting
- 5 years warranty
- 19 x 12.4 x 11.5mm size
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
4:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
420mA |
| Output Current - Output 2 |
-420mA |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
11.5mm |
| Input Voltage DC Min |
9V |
| Product Range |
CCG10 Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
10W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
- |
| Input Voltage DC Nom |
24V |
| Width |
12.4mm |
| Depth |
19mm |
| Input Voltage DC Max |
36V |
| SVHC |
Lead (25-Jun-2025) |
