Description
Product Overview
The CSC2690 is a high-voltage NPN silicon transistor designed for medium-current applications. With a collector-emitter voltage rating of 120V and a current rating of 1.2A, it is optimized for use in switching and amplification circuits where reliable performance and efficiency are required. The transistor is housed in a compact TO-126-3 package, making it suitable for space-constrained designs. The CSC2690 transistor is a versatile and reliable NPN component, suitable for high-voltage and medium-current applications. Its robust design, high voltage rating, and compact TO-126-3 package make it a valuable choice for various electronic circuits and systems.
- Collector-Emitter Voltage (Vceo): 120V
- Collector-Base Voltage (Vcbo): 120V
- Emitter-Base Voltage (Vebo): 5V
- Collector Current (Ic): 1.2A
- Base Current (Ib): Application-dependent
- Power Dissipation (Pd): Typically up to 1.5W, depending on cooling and mounting conditions
- DC Current Gain (hFE): Typically ranges from 50 to 150 at Ic = 1A, Vce = 10V (values vary based on specific conditions)
- Package Type: TO-126-3
- Pin Configuration: 3 Pins (Collector, Base, Emitter)
- Mounting Style: Through-Hole
- Package Dimensions: Compact, allowing for efficient use of space in electronic designs
- Junction Temperature (Tj): -55°C to +150°C
- Thermal Resistance, Junction to Ambient (RθJA): Approximately 100°C/W (varies with heat sinking and mounting conditions)
Applications
Audio, Power Supplies, DC/DC Converters, Motor Drive & Control, Signal Processing
Product details
| Transistor Polarity | NPN |
| Continuous Collector Current | 1.2A |
| Transistor Case Style | TO-126 |
| No. of Pins | 3Pins |
| DC Current Gain hFE Min | 60hFE |
| Product Range | Multicomp Pro Bipolar Transistor NPN |
| MSL | - |
| Collector Emitter Voltage Max | 120V |
| Power Dissipation | 20W |
| Transistor Mounting | Through Hole |
| Transition Frequency | 155MHz |
| Operating Temperature Max | 150°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MULTICOMP PRO |
| Part Number | CSC2690 |
| Quantity | Each |
| Technical Data Sheet (875.13KB) EN | View or download |

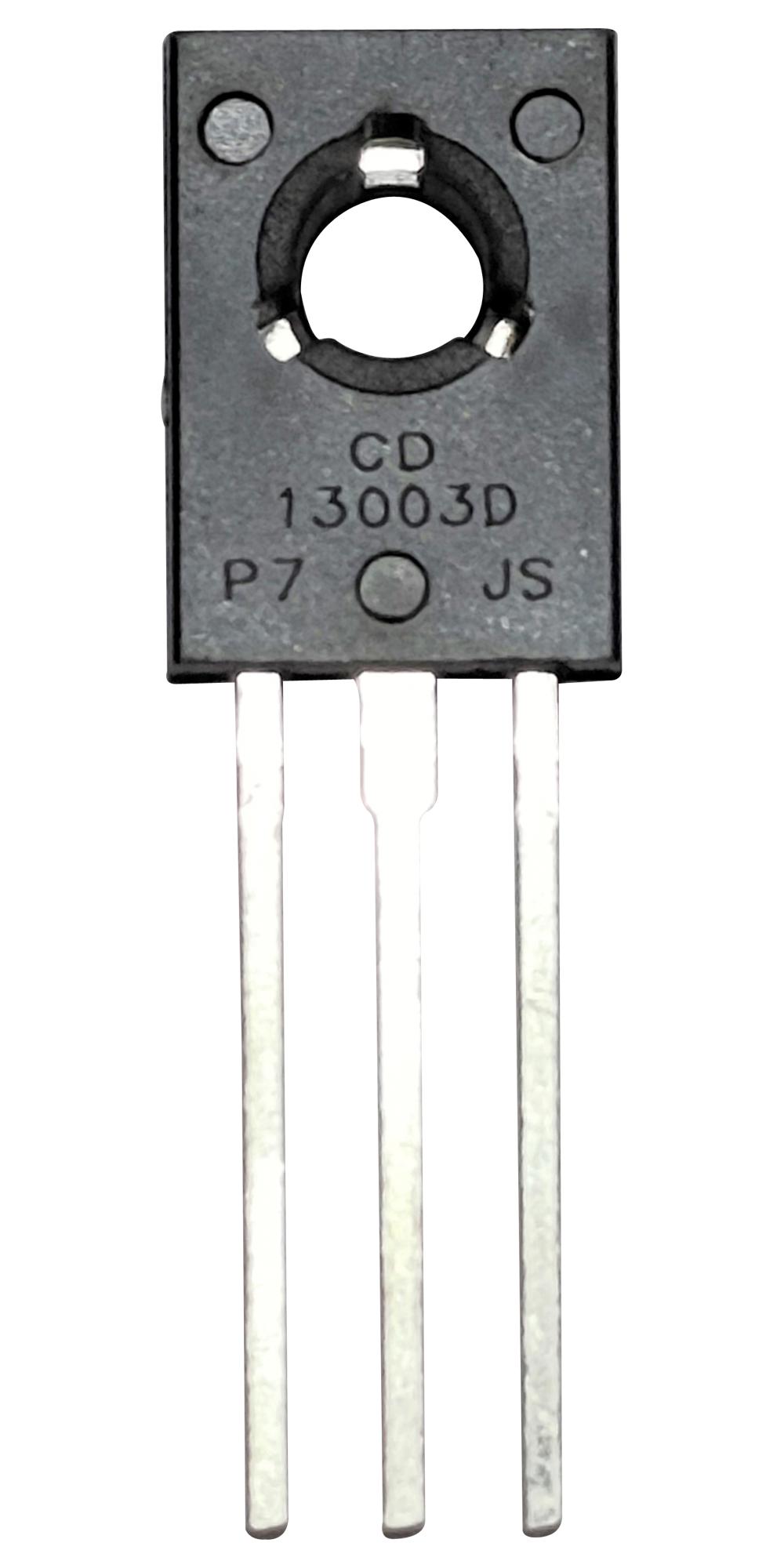

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
