Description
Product Overview

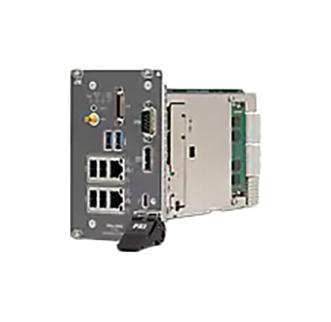

788816-01 is a PXIe, 2.6GHz 6-core processor PXI controller. The PXIe‑8842 is an embedded controller for PXI systems that you can use for processor-intensive modular instrumentation and data acquisition applications. The PXIe‑8842 includes two 10/100/1000/2500BASE‑T (Gigabit) Ethernet ports, one Thunderbolt™ 4 port, two USB 3.0 ports, four USB 2.0 ports, as well as an integrated hard drive, serial port, and other peripheral I/O.
- 12MB smart cache
- 8GB standard (16GB maximum), single channel DD4-3200MHz, nonECC SODIMM memory
- 512GB (or greater) M.2, NVMe SSD storage
- 1 x DisplayPort 1.4
- 5GT/s PCI express link speed
- Windows 10 IoT or Linux RT installed operating system
- One system slot plus three controller expansion slots
- Fully compatible with PXI Express Specification 1.0
- Optional TPM 2.0(Trusted Platform Module)
Notes
1 year warranty.
Product details
| Processor Type | Intel Core i5-11500HE |
| No. of Processor Cores | 6 Core |
| Hard Drive Capacity | 512GB |
| Operating Temperature Range | 0°C to +55°C |
| Interface Type | Ethernet, RS-232, USB |
| For Use With | NI PXI Systems, PXI Express Systems |
| SVHC | To Be Advised |
| Operating Frequency | 2.6GHz |
| RAM Memory Size | 8GB |
| No. of Slots | 4 |
| Compatible With | NI PXI Chassis |
| Supported OS | Windows 11 |
| Product Range | PXIe-8842 |
Other details
| Brand | NI / EMERSON |
| Part Number | 788816-01 |
| Quantity | Each |
| Technical Data Sheet (133.00B) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1086817.26 |
| 3-5 | ₹ 1075727.28 |
| 5-10 | ₹ 1053547.34 |
| 10+ | ₹ 1031367.4 |
Bulk discount will be automatically applied during checkout based on quantity.
