Product Overview

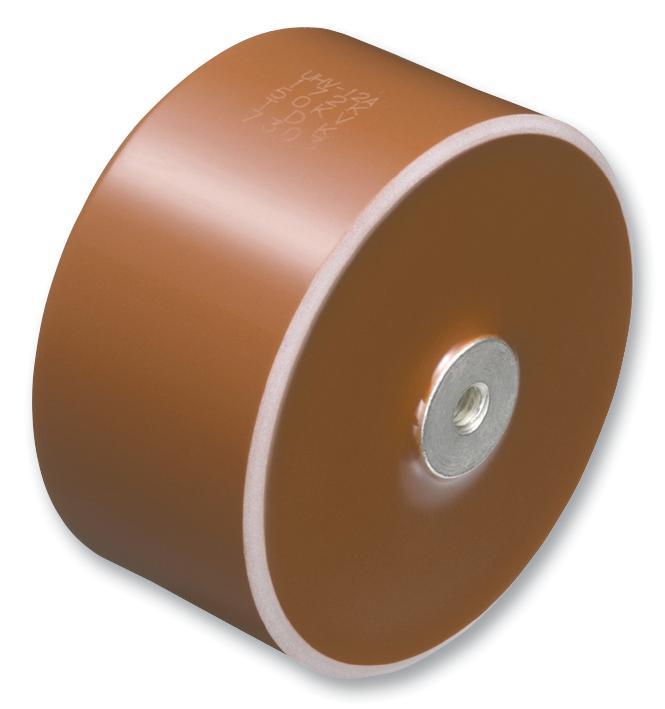

UHV-243A is an ultra high voltage ceramic capacitor for high voltage power supplies/lasers (for medical devices, lithography, industrial analysers).
- Capacitance value is 400pF with ±10% tolerance
- Rated voltage is 40KVDC
- Withstanding voltage is 60KVDC [1min. insulating liquid]
- Dissipation factor is 0.1% maximum
- 10,000Mohm minimum insulation resistance
- Low ESR, low loss and low distortion factor
- Moulded type metal screw terminals for easy mounting
- Uses high-reliability mould resin
- Operating temperature range from -30 to +85°C
Product details
| Capacitance |
400pF |
| Capacitance Tolerance |
± 10% |
| Lead Spacing |
- |
| Product Range |
UHV Series |
| Operating Temperature Max |
85°C |
| Voltage(DC) |
40kV |
| Dielectric Characteristic |
Z5T |
| Capacitor Terminals |
Screw |
| Operating Temperature Min |
-30°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TDK |
| Part Number |
UHV-243A |
| Quantity |
Each |
