Product Overview

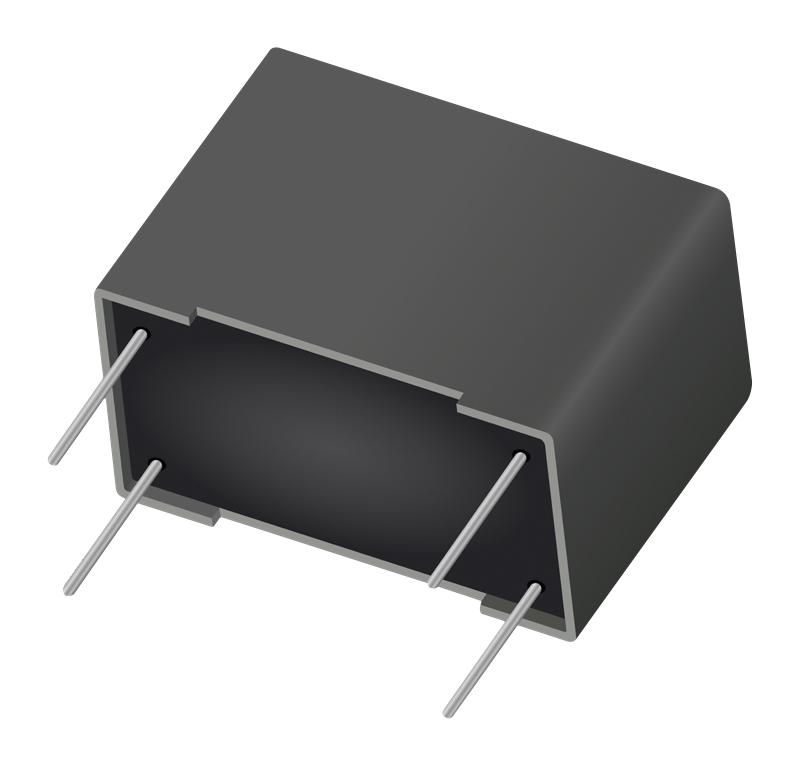

KYOCERA AVX FE52GF8Q0906KB Power Film Capacitor, Metallized PP, Radial Box - 4 Pin, 90 µF, ± 10%, DC Filter, Through Hole
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
90µF |
| Typical Applications |
0 |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE III (Test Condition B) |
| Lead Spacing |
52.5mm |
| Peak Current |
1.8kA |
| ESR |
3300µohm |
| Product Length |
57.7mm |
| Product Height |
60mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
600V |
| Capacitor Terminals |
- |
| dv/dt Rating |
20V/µs |
| RMS Current (Irms) |
31.4A |
| Product Diameter |
- |
| Product Width |
35mm |
| Ripple Current |
- |
| Product Range |
FE Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (17-Dec-2015) |
Other details
| Brand |
KYOCERA AVX |
| Part Number |
FE52GF8Q0906KB |
| Quantity |
Each |
| Technical Data Sheet (1.33MB) EN |
View or download |
