Product Overview
MPCMA36-DC12V-A is an unsealed, NO, quick connect type automotive relay.
- 50A of switching capability, SPST and SPDT contact form
- SPST-NO contact form, Ag alloy contact material
- 50mohm (24VDC/1A) max contact resistance, 100,000 cycles electrical life
- 100Mohm 500VDC min insulation resistance, 1,000,000 cycles (300 cycles/minutes) mechanical life
- 10ms max operate time and 10ms max release time
- 12VDC nominal voltage, 90 ohm ±10% coil resistance
- 7.8VDC operate voltage, 1.2VDC release voltage, 1.6W coil power
- Operating temperature range from -40°C to +125°C
- Dimension is 26mm × 26mm × 22.7mm
Product details
| Coil Voltage |
12VDC |
| Contact Configuration |
SPST-NO |
| Relay Terminals |
Quick Connect |
| Contact Voltage DC Nom |
14V |
| Contact Material |
Silver Alloy |
| Contact Current |
40A |
| Relay Mounting |
Through Hole |
| Product Range |
MP Automotive Relays |
| Coil Resistance |
90ohm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MPCMA36-DC12V-A |
| Quantity |
Each |
| Technical Data Sheet (424.40KB) EN |
View or download |

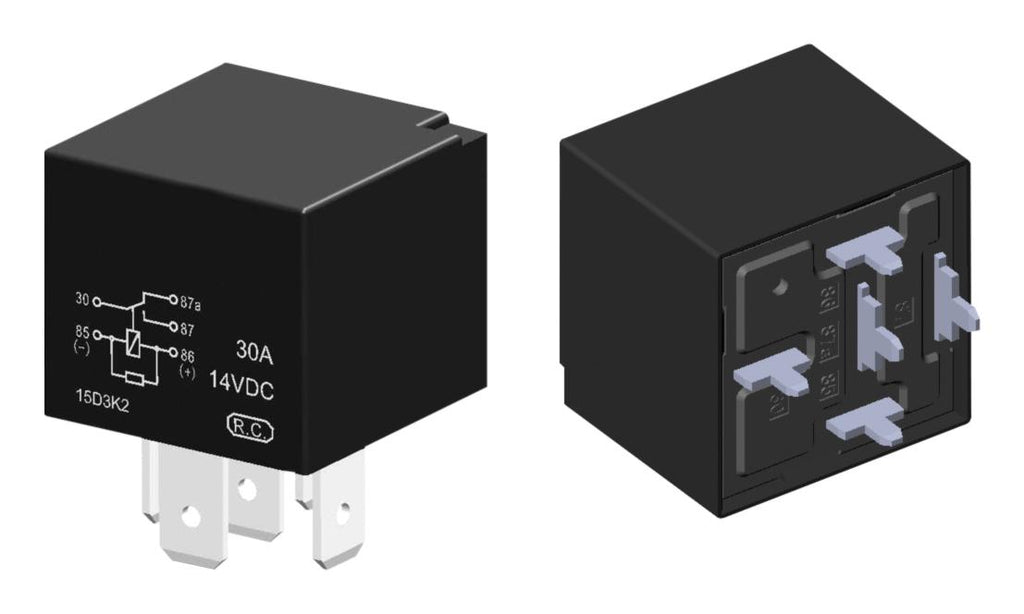

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
