Description
Product Overview

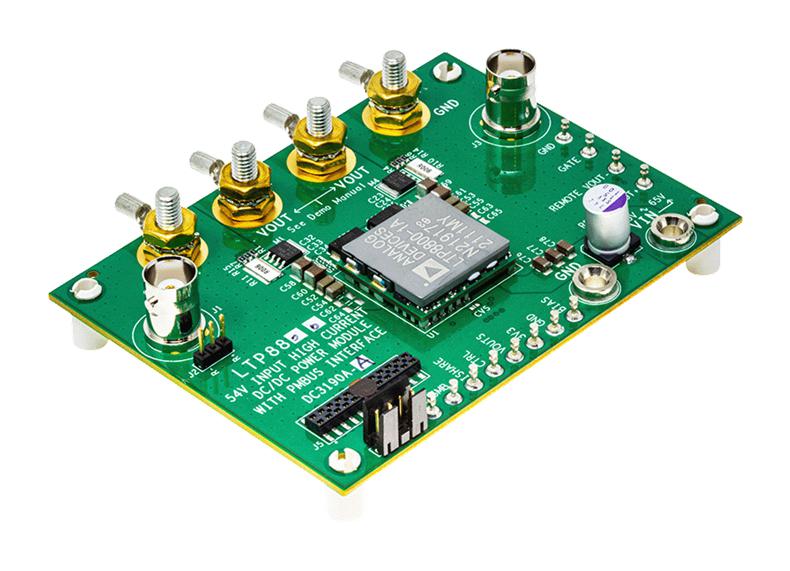

DC3190A-A is a demonstration circuit 3190A-A featuring a high current, high density, high efficiency open-frame μModule® regulator with 45V to 65V input range. The demo board has a LTP™8800-1A μModule regulator which provides microprocessor 0.75V voltage from 54V power distribution architecture with digital power system management. The maximum output current for the demo board is 150A. DC3190A-A powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.
- 45V to 65V input voltage range
- 0.746 to 0.754V output voltage range
- Default switching frequency range from 0.925MHz to 1.075MHz
- 85.6% converter efficiency at VIN = 54V, fSW = 1MHz, VOUT = 0.75V, IOUT = 150A
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
| Silicon Manufacturer | Analog Devices |
| Kit Application Type | Power Management - Voltage Regulator |
| Kit Contents | Demo Board LTP8800-1A |
| Automotive Qualification Standard | - |
| Silicon Core Number | LTP8800-1A |
| Application Sub Type | Step Down Micro Module Regulator |
| Product Range | - |
| SVHC | No SVHC (07-Jul-2017) |
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC3190A-A |
| Quantity | Each |
| Technical Data Sheet (2.36MB) EN | View or download |
