Description
Product Overview

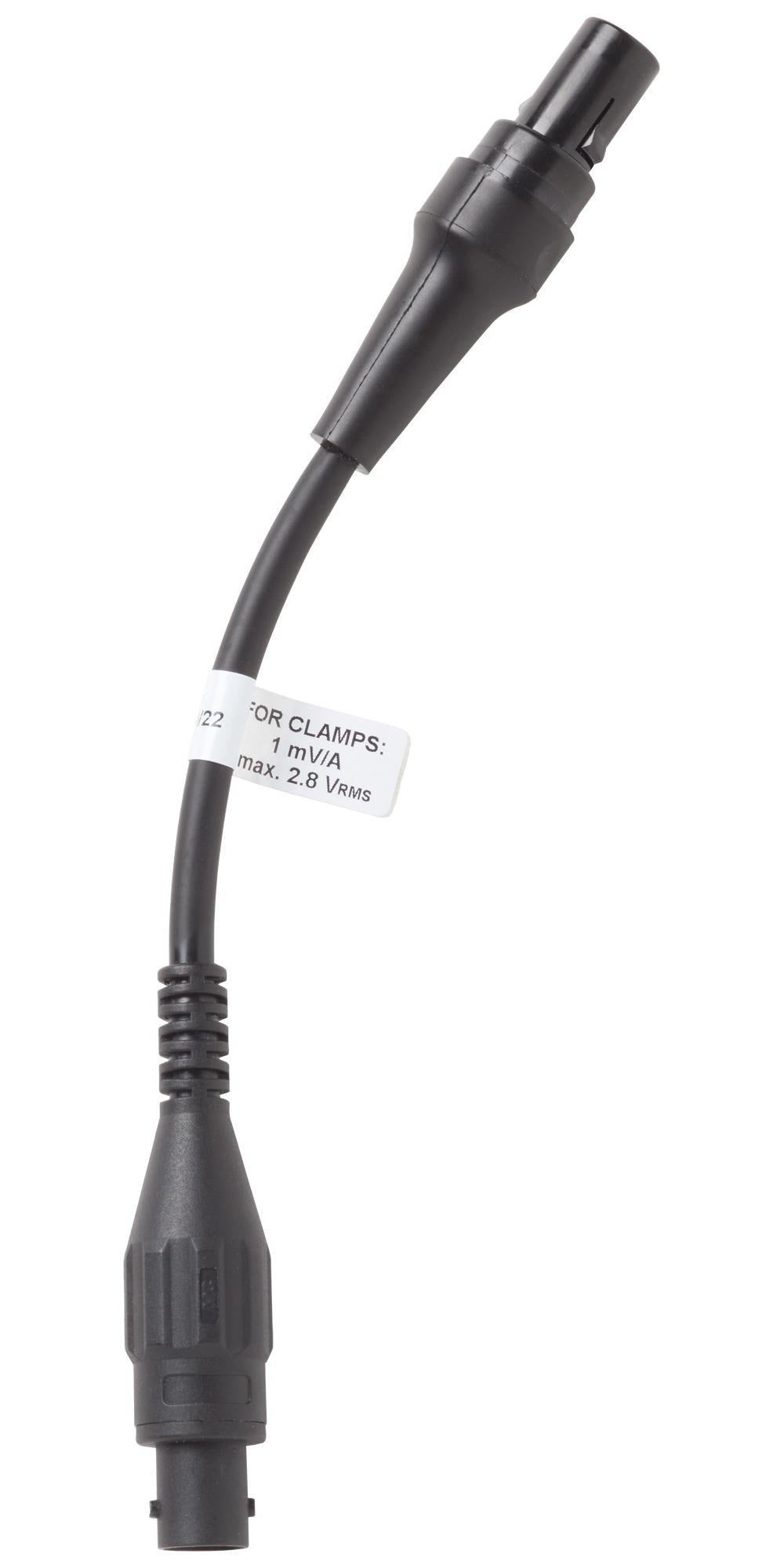

17XX-CLAMP-ADPT-2V8 is a BNC adapter for 2.8V clamps. Compatible with current clamps featuring an output maximum of 2.8 V AC/DC, this BNC adapter allows the connection of AC or DC clamps to 17XX multimeters. In addition, this adapter consists of a cable with a plug that fits 17XX multimeters and a female BNC connector, allowing other current clamps connections with mV/A outputs.
- 18cm long cable with 17XX connector and BNC connector
- For current clamps featuring a maximum output of 2.8V
- Scale factor set in the instrument as mV/A
- mV/A conversion for 17XX instruments
- Current measurement using iron cored current transformers
- Enables DC current measurements, DC power with instrument
- Female BNC connector
- Internal conductor protection, label indicating adapter type
- CAT IV, 600V and CATIII 1000V rating according to IEC61010-2-30 appendix 2
- Dimension is 177.8 x 15.75 x 15.75mm
Contents
BNC adapter, Instruction sheet, One-year warranty.
Notes
Get a FREE Fluke tool on spend of £100+ (excl. VAT)in EMEA only, until 31/12/2026. Discover more: https://www.farnell.com/datasheets/4800832.pdf.
Product details
| Accessory Type | 17xx Clamp Adapter to BNC Jack Adapter |
| Product Range | - |
| For Use With | Fluke 17xx Series Power Quality Analyzers |
| SVHC | No SVHC (15-Jun-2015) |
Other details
| Brand | FLUKE |
| Part Number | 17XX-CLAMP-ADPT-2V8 |
| Quantity | Each |
| Technical Data Sheet (45.00B) EN | View or download |
| Promotional Offers (1.77MB) EN | View or download |
