Product Overview

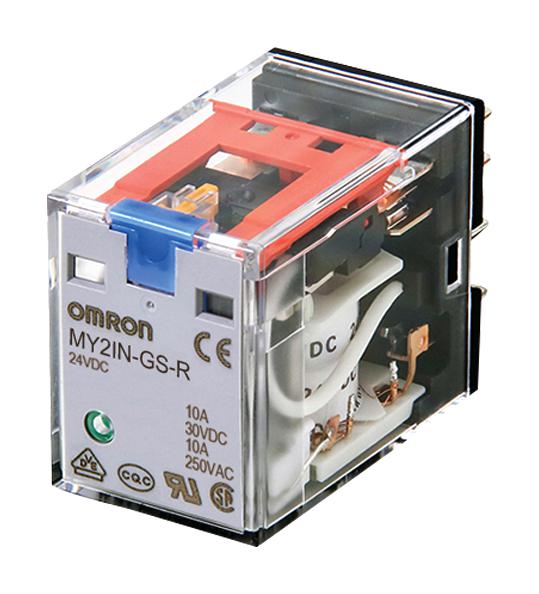

MY2IN-D2-GS-R DC24 is a MY-GS-R series miniature power relay. Mechanical indicators added as a standard feature. Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).
- A line-up of model with latching levers added for easier circuit checking
- Relays with AC and DC coils have different colours of operating indicators (LEDs)
- UL, CSA, IEC (VDE certification), and CQC
- 2 poles, DPDT contact configuration, with latching lever
- LED operation indicator and built-in mechanical indicators
- Model with built-in diodes
- 24VDC operating coil voltage
- 10A at 250VAC, 10A at 30VDC rated load (resistive), 2500VA/300W max switching capacity (resistive)
- Ambient operating temperature range from -40 to 70°C (with no icing or condensation)
- 36.3 (37.7)mA rated current, 662 (636) ohm coil resistance, 3.2H coil inductance (armature OFF)
Product details
| Contact Configuration |
DPDT |
| Contact Current |
10A |
| Relay Mounting |
Socket |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
30V |
| Coil Resistance |
662ohm |
| Coil Voltage |
24VDC |
| Product Range |
MY Series |
| Coil Type |
Latching |
| Relay Terminals |
Plug In |
| Contact Material |
Silver |
| SVHC |
To Be Advised |
Other details
| Brand |
OMRON INDUSTRIAL AUTOMATION |
| Part Number |
MY2IN-D2-GS-R DC24 |
| Quantity |
Each |
| Manufacturer Catalogue (82.00B) EN |
View or download |
| Technical Data Sheet (5.49MB) EN |
View or download |
