Product Overview

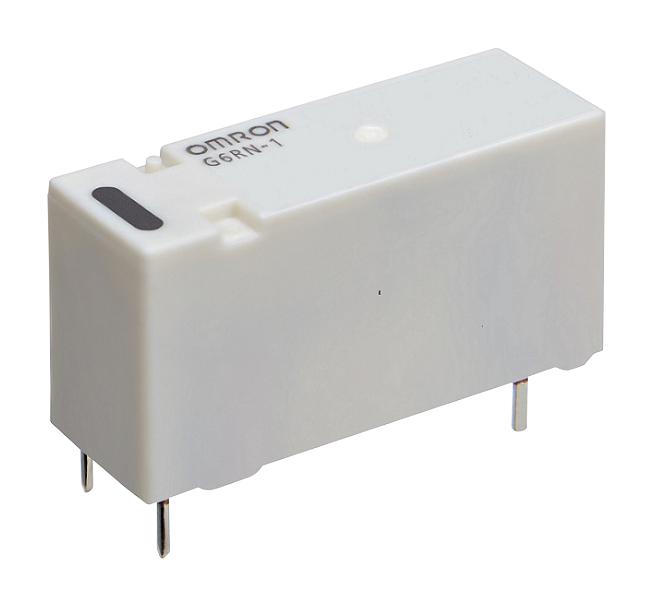

G6RN-1A7-E-ASI-CF-HA-DC12 is a PCB miniature power relay for 1-pole 10A switching. It offers high insulation with an insulation distance of 8mm and impulse withstand voltage of 10kV between coil and contacts. It meets the international safety standard for resistance to ignition (IEC/EN 60335-1) and it also meets the explosion-proof certification IEC60079-15. Application example includes air conditioner/HVAC (heat pump, boiler, etc.), industrial equipment (small FA controllers, inverters, servo amplifiers, temperature controllers, etc.).
- Low-profile height of 15mm, 10A (N.O.) of high switching capacity
- High sensitivity with 220mW power consumption, standard model conforms to VDE standards
- 1-pole number of poles, SPST-NO (1a) contact form
- Flux-resistant type degree of protection, high-capacity type special functions
- AgSnIn contact material, Class F coil insulation class
- High-capacity type classification, 12VDC rated coil voltage
- 18.3mA rated current, 655ohm coil resistance, Approx. 220mW power consumption
- Maximum switching voltage is 250VAC, 30VDC (resistive load)
- Maximum operate time is 15ms, maximum release time is 5ms
- Ambient operating temperature range from -40°C to 85°C
Product details
| Contact Configuration |
SPST-NO |
| Contact Current |
10A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Coil Resistance |
655ohm |
| Coil Voltage |
12VDC |
| Product Range |
G6RN Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Tin Indium |
| SVHC |
To Be Advised |
Other details
| Brand |
ARATAS |
| Part Number |
G6RN-1A7-E-ASI-CF-HA-DC12 |
| Quantity |
Each |
| Technical Data Sheet (1.12MB) EN |
View or download |
| Product Change Notice (704.23KB) EN |
View or download |
