Description
Product Overview

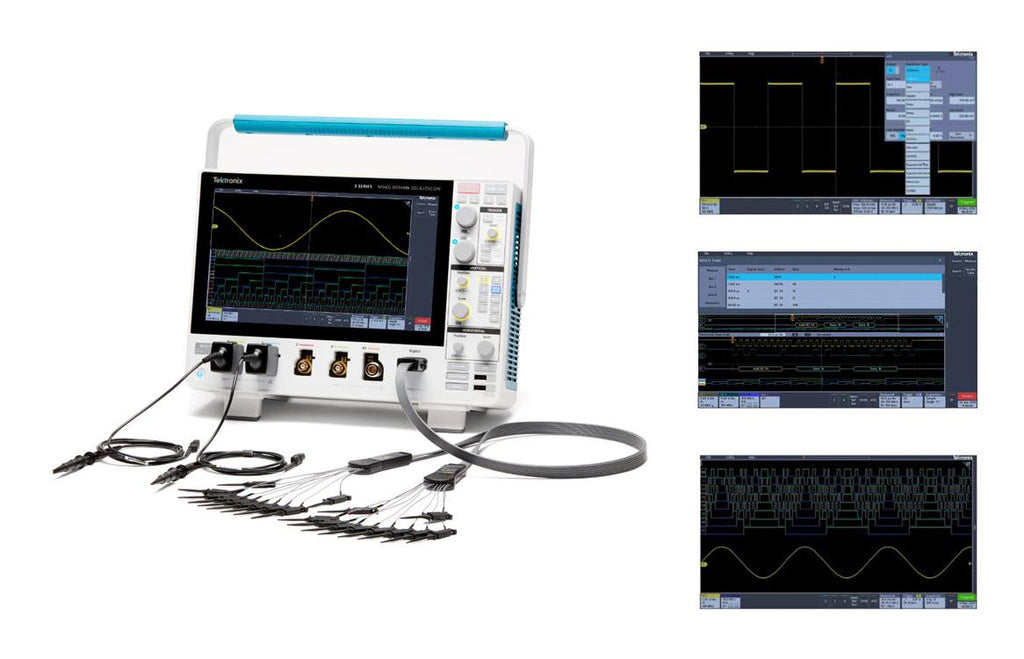

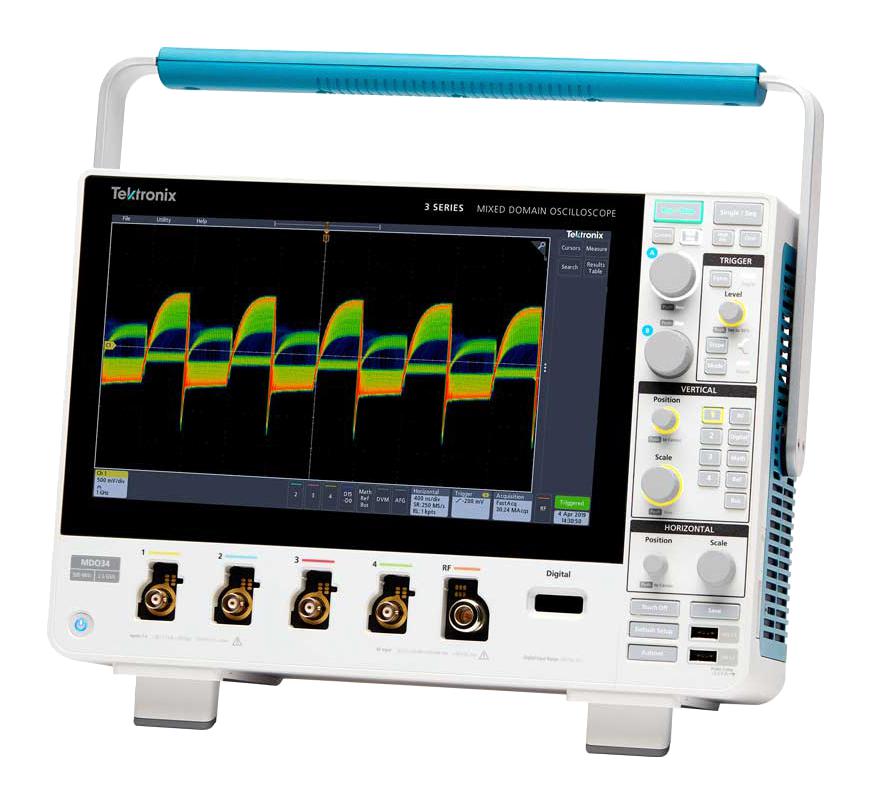

MDO34 3-BW-1000+3-AFG+3-BND+3-MSO PROMO is a 3 series 16 digital, 1GHz bandwidth, 2.5GSPS, 10Mpts, 400ps mixed domain oscilloscope (MDO). Typical applications are Embedded design and IoT, power design, education, manufacturing test and troubleshooting, service installation and maintenance. Safety standards are UL61010-1:2004, CAN/CSA-C22.2 No. 61010.1: 2004, Low Voltage Directive 2006/95/EC and EN61010-1:2001, IEC 61010-1:2001, ANSI 61010-1-2004, ISA 82.02.01.
- (4) analogue channels, 1GHz spectrum analyser, (1) spectrum analyser input, (1) logic analyser input
- 8 bits vertical resolution, 11.6inch (295mm) TFT LCD with capacitive touch display, TekVPI inputs
- Digital phosphor technology with FastAcq™ high-speed waveform capture
- Basic waveform analysis and automated measurements, easy navigation and search
- Fast and accurate spectral analysis, intelligent efficient markers
- Ultra-wide capture bandwidth, spectrum traces, RF probing
- Color-coded digital waveform display, MagniVu™ high-speed acquisition
- Digital voltmeter (DVM) and frequency counter (free with registration)
- Power source voltage range from 100 to 240V ±10%, 130W maximum power consumption
- Dimension is 252mm height x 370mm width x 148.6mm depth, -10°C to 55°C operating temperature range
Contents
MDO34 mixed domain oscilloscope, 1GHz bandwidth, 10X, 3.9pF one passive voltage probe per analogue channel (TPP1000).
Notes
Save up to 68% (already applied) fully loaded Tektronix 3 Series MDO oscilloscopes with advanced analysis, flexible upgrades, and powerful debugging capabilities in EU, Until 31 December 2026.
Product details
| Product Range | 3 Series MDO |
| Bandwidth | 1GHz |
| Display Memory Depth | 10 Mpts |
| Scope Display Type | TFT FHD Capacitive Touch Screen |
| Manufacturer Warranty | 3 Years |
| SVHC | To Be Advised |
| Scope Channels | 4 Analogue, 16 Digital |
| Sampling Rate | 5GSPS |
| Calculated Rise Time | 400ps |
| Kit Contents | MDO, TPP1000 Probe/Ch, P6316 Probe, 3-BW-1000 Upgrade, 3-AFG Function Gen, 3-BND Application Bundle |
| Plug Type | - |
Other details
| Brand | TEKTRONIX |
| Part Number | MDO34 3-BW-1000+3-AFG+3-BND+3-MSO PROMO |
| Quantity | Each |
| Technical Data Sheet (3.17MB) EN | View or download |
