Product Overview

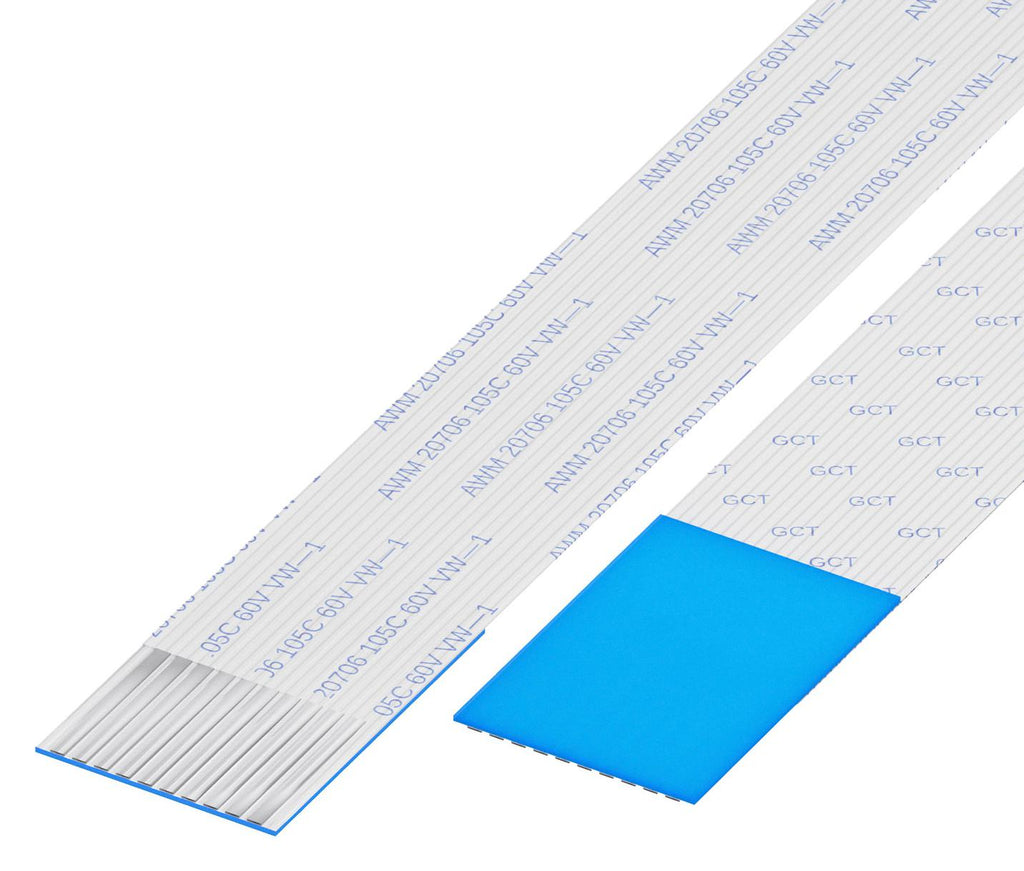

10-10-D-0050-C-4-08-4-T is a 1mm pitch, 10 contacts, flat flex cable. It is a best fit to your requirements, due to the intricate nature of folds and the orientation of the cable with design. Shielding (grounding) is used to improve EMI (Electro Magnetic Interference) protection, which provides protection from external electrical noise.
- D type - conductor opposite side
- Support strip length 8mm both ends
- UL20706 printed
- Tin plated
- 60V, 1A rating
- Tinned copper conductor, white flame retarded polyester insulation
- 50mm length
- Operating temperature of 105°C(UL20706)
Product details
| No. of Cores |
10Core |
| Contact Orientation |
Opposite Sided Contacts |
| Cable Length - Metric |
50mm |
| Product Range |
- |
| Pitch Spacing |
1mm |
| Cable Length - Imperial |
2" |
| Jacket Colour |
White |
| SVHC |
No SVHC (27-Jun-2024) |
Other details
| Brand |
GCT |
| Part Number |
10-10-D-0050-C-4-08-4-T |
| Quantity |
Each |
| Drawing (101.14KB) EN |
View or download |
