Product Overview
NBH-16-432 is a NBH series power line filter. It is an ultra-high attenuation type of common mode noise from 10KHz to 10MHz. Approved by UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC safety approval.
- Single phase input type (2-stage filter)
- Rated voltage of 250VDC, rated current of 16A
- Test voltage of 2,500VAC (cut-off current = 20mA), 1minute at room temperature & humidity
- Isolation resistance (terminal-mounting plate) of 500VDC 100Mohm min at room temperature & humidity
- Push down type terminal block
- Leakage current 125/250V 60Hz of 0.5mA/1.0mA maximum
- Operating temperature range from -40 to +85°C
- Case size (without projection) of 53 x 43 x 104mm (W x H x D)
Product details
| Filter Applications |
General Purpose |
| Current Rating |
16A |
| No. of Stages |
2 Stage |
| Filter Input Terminals |
Screw |
| Product Range |
NBH Series |
| Voltage Rating |
250V |
| No. of Phases |
Single Phase |
| Filter Mounting |
Chassis Mount |
| Filter Output Terminals |
Screw |
| SVHC |
No SVHC (04-Feb-2026) |
Other details

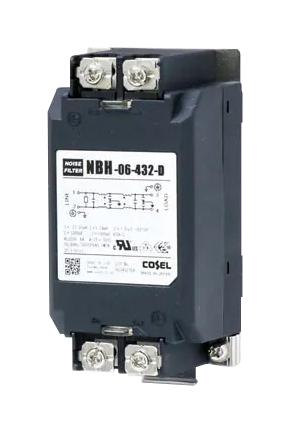

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
