Product Overview
MGW61212 is a MGW6 series PCB mount DC-DC converter in an industry standard 8 pin SIP package. It features include built-in overcurrent protection circuits (recovers automatically) and built-in remote ON/OFF.
- Input voltage range from 9V to 18V
- Output power of 6W
- Output voltage of ±12V, output current of 250mA/250mA
- I/O isolation voltage DC1,500V (1 minute)
- High reliability : not built-in aluminium and tantalum electrolytic capacitor
- Operating temperature/humidity of -40 to +85℃, 20 to 95%RH (non condensing) (required derating)
- UL60950-1, C-UL, EN62368-1 safety approvals
- Case size of 22.0 x 12.0 x 9.5mm (W x H x D)
- 10 year warranty
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
4:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
250mA |
| Output Current - Output 2 |
250mA |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
12mm |
| Input Voltage DC Min |
9V |
| Product Range |
MGW6 Series |
| DC / DC Converter Type |
SIP |
| Output Power Max |
6W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
- |
| Input Voltage DC Nom |
12V |
| Width |
9.5mm |
| Depth |
22mm |
| Input Voltage DC Max |
18V |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
COSEL |
| Part Number |
MGW61212 |
| Quantity |
Each |
| Technical Data Sheet (6.36MB) EN |
View or download |

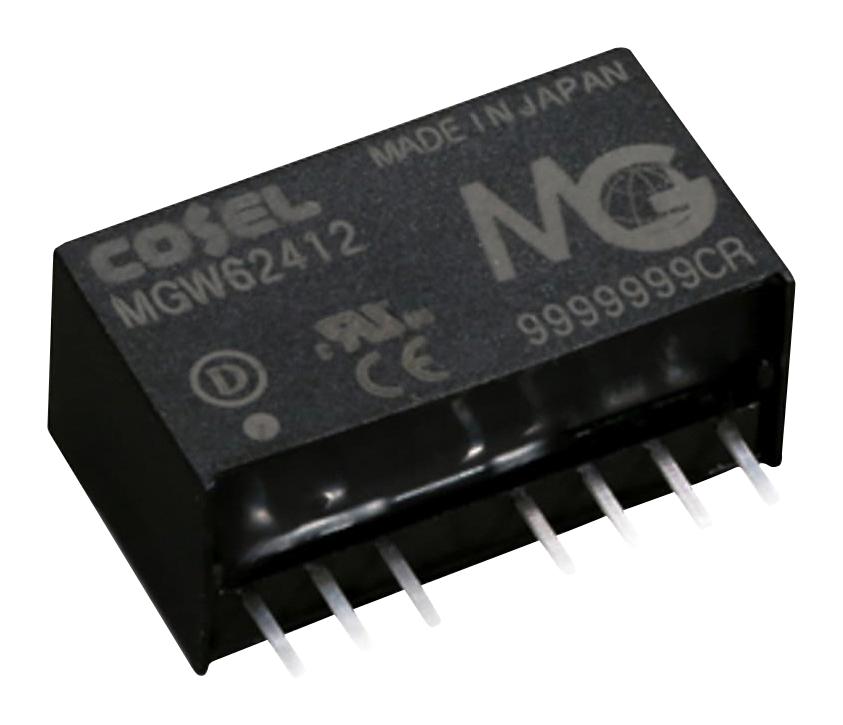

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
