Product Overview

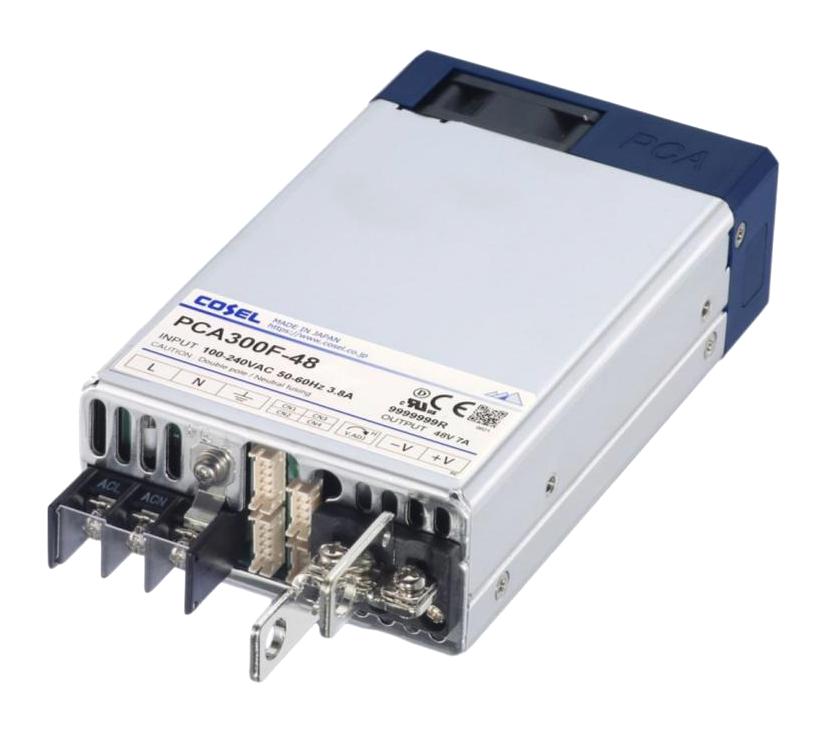

PCA300F-48-I is a PCA300F series enclosed type AC to DC power supply with PMBus interface. Suitable for medical electric equipment (ANSI/AAMI ES60601-1, EN60601-1 3rd). Approved by UL62368-1, C-UL (CSA62368-1), EN62368-1, ANSI/AAMI ES60601-1, EN60601-1 3rd safety approval and complies with FCC-B, CISPR32-B, EN55011-B, EN55032-B, VCCI-B.
- Universal input voltage range from 85 to 264VAC
- Maximum output power of 336W
- Output voltage of 48V, output current of 7A
- Low profile (41mm = meet 1U height)
- Medical isolation grade 2MOPP
- With AUX output 12V, 0.1A (voltage variable range 5 to 12V)
- Constant current function, output voltage can be adjusted to near 0V, with various alarms
- Parallel operation / N+1 parallel redundancy operation possible
- Case size of 89 x 41 x152mm (without terminal block and screw) (W x H x D)
- Up to 5 year warranty
Product details
| Power Supply Applications |
ITE & Medical |
| Output Power Max |
336W |
| Output Current - Output 1 |
0 |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Fixed |
| SVHC |
Lead (04-Feb-2026) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
48V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
85V AC to 264V AC |
| Product Range |
PCA300F-48 Series |
