Product Overview

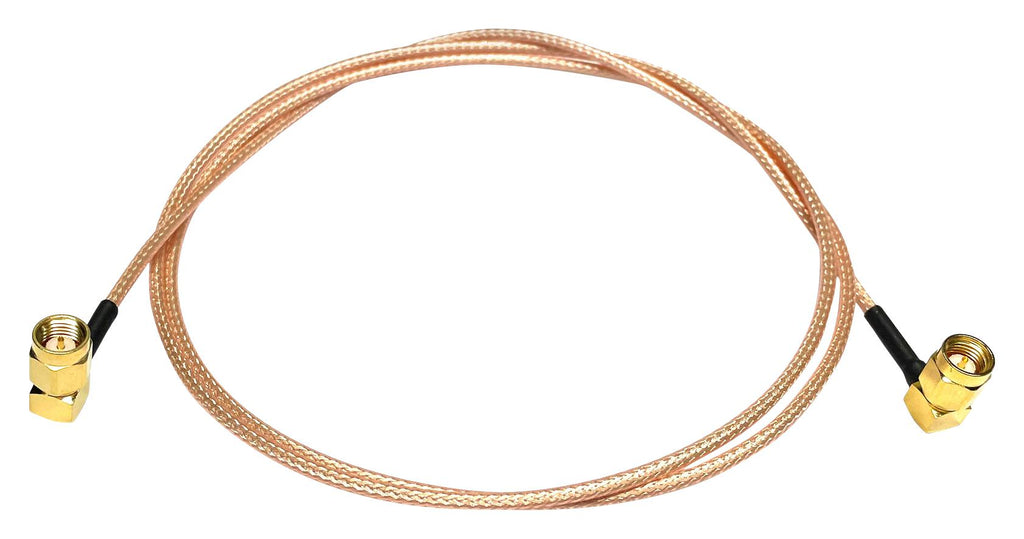

BU-4150032006 is a gold plated SMA male plug right angle to gold plated SMA male plug right angle cable assembly.
- Operating temperature range from -65°C (-85°F) to 150°C (302°F)
- 6" (152.40mm) cable length
- 0 to 6GHz frequency
- 50 ohm connector impedance
- 1.25 maximum VSWR
- 335V working voltage (at sea level)
Product details
| Cable Length - Imperial |
6" |
| Cable Length - Metric |
152.4mm |
| Connector Type A |
SMA Right Angle Plug |
| Impedance |
50ohm |
| Product Range |
- |
| Connector to Connector |
90° SMA Plug to 90° SMA Plug |
| Coaxial Cable Type |
RG316 |
| Connector Type B |
SMA Right Angle Plug |
| Jacket Colour |
- |
Other details
| Brand |
MUELLER ELECTRIC |
| Part Number |
BU-4150032006 |
| Quantity |
Each |
| Technical Data Sheet (227.60KB) EN |
View or download |
