Product Overview

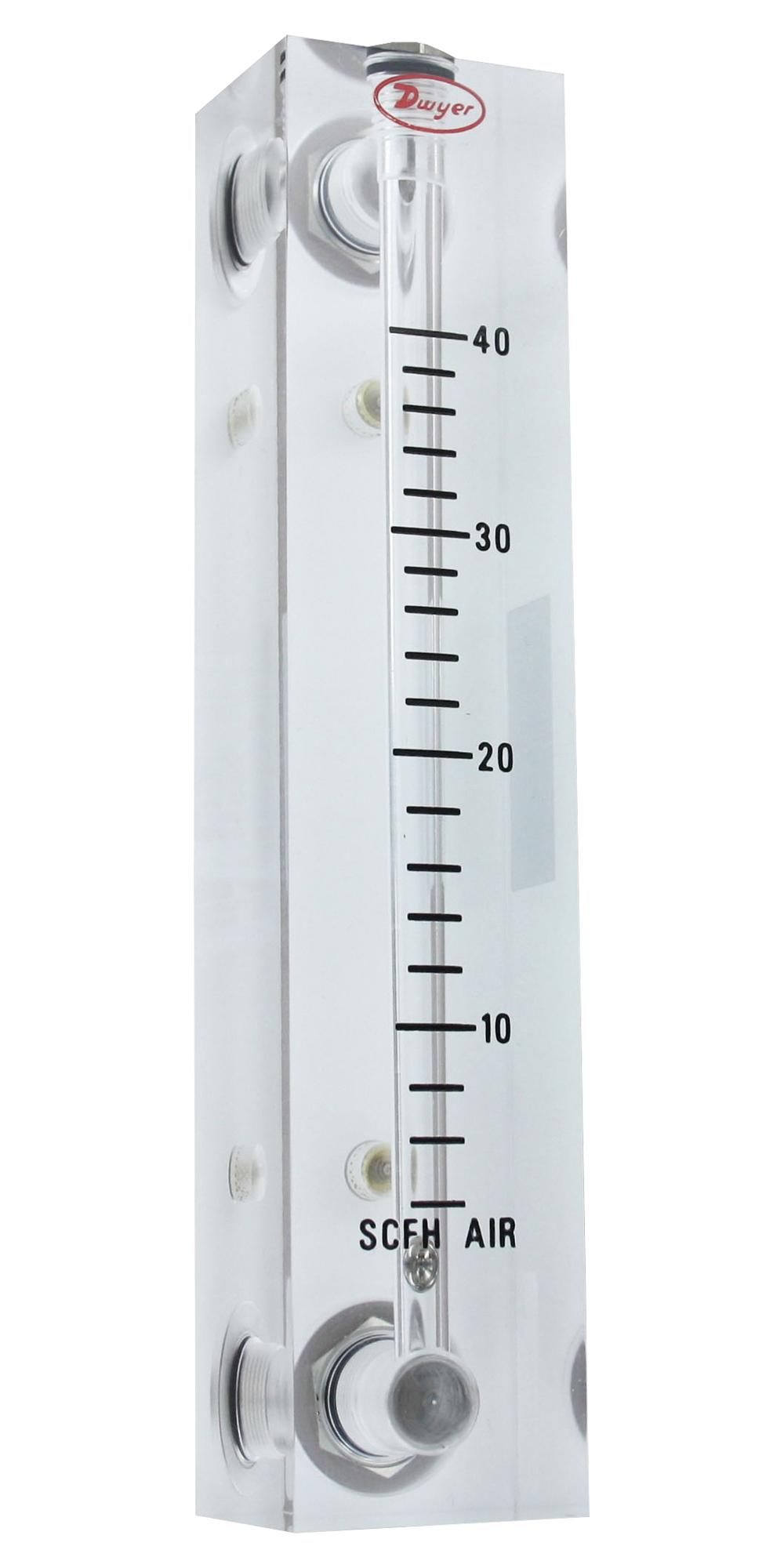

VFB-67-SSV is a series VF Visi-Float® acrylic flowmeter. Flowmeter is a line of direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeter is backed by over 60 years of experience in acrylic instrument machining. Typical applications include medical equipment, laboratory equipment, air samplers, gas analysers, pollution monitors, chemical injectors and cabinet purging.
- VFB flowmeter with stainless steel valve
- 4" typical length scale
- Flowmeter range from 1-20LPM air
- Bodies are cut & precision machined from solid, clear acrylic blocks allowing for visual inspection
- White background allows for better visibility of the float increasing reading accuracy
- Direct reading scales are hot stamped into the plastic eliminating need for troublesome conversions
- Precision machined tapered bore enables high repeatability
- Low installation costs with back/end connection options with metal mounting inserts
- 1/8˝ female NPT process connection
- Mount in vertical position
Product details
| Flow Rate Min |
1l/min |
| Supply Voltage Min |
- |
| Accuracy % |
3% |
| SVHC |
No SVHC (04-Feb-2026) |
| Pressure Max |
100psi |
| Flow Rate Max |
20l/min |
| Supply Voltage Max |
- |
| Product Range |
Visi-Float VFB Series |
| Port Size |
3.175mm |
Other details
| Brand |
DWYER |
| Part Number |
VFB-67-SSV |
| Quantity |
Each |
| Technical Data Sheet (385.98KB) EN |
View or download |
