Product Overview

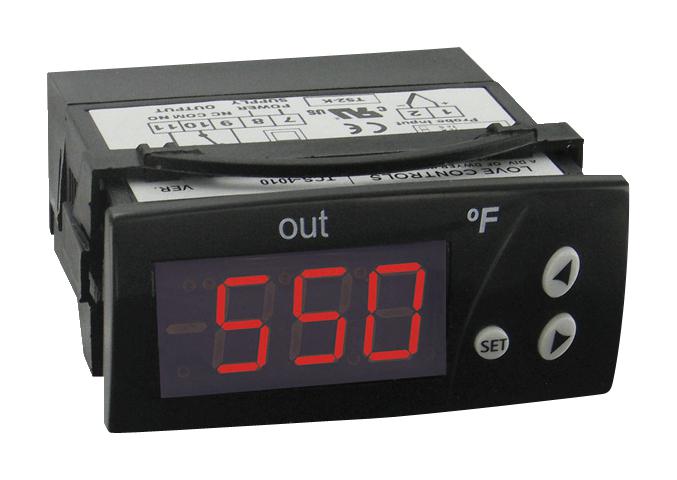

TCS-4040 is a series TCS thermocouple temperature switch monitors and controls temperature while offering a wide temperature range, two selectable alarm sets, and an internal buzzer indicating alarm condition or error. Typical applications include food service equipment and industrial process control.
- Supply power of 24VAC/VDC
- Type J or K thermocouple input and 32 to 999°F for Type J, 32 to 999°F for Type K probe range
- Heating or cooling modes
- Internal alarm buzzer
- Configuration key to quickly load parameters from one unit to another
- SPDT relay rated 16A at 240VAC resistive output
- ON/OFF control type
- 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign display
- Non-volatile backup memory
- IP64 front panel rating
Product details
| Thermocouple Type |
J, K |
| Operating Temperature Min |
0°C |
| Output Voltage Min |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Operating Temperature Max |
70°C |
| Output Voltage Max |
240VAC |
| Product Range |
TCS Series |
Other details
| Brand |
DWYER |
| Part Number |
TCS-4040 |
| Quantity |
Each |
| Technical Data Sheet (334.09KB) EN |
View or download |
