Product Overview

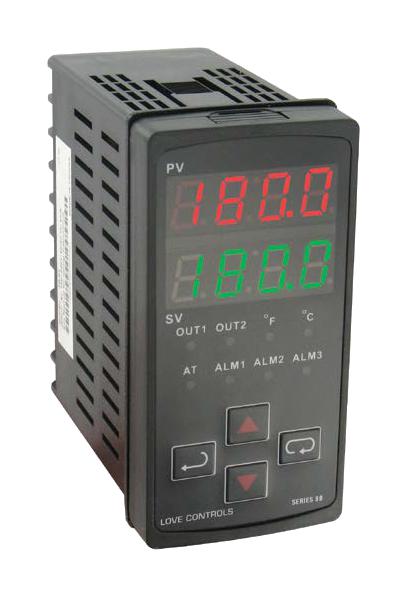

8B-33-LV is a series 8B temperature/process loop controller offers advanced control features for the most demanding temperature or process applications. Designed with dual, 4 digit LED displays for local indication of the process value, set point, and output conditions. Typical applications include oven, boiler, or chiller control, environmental chambers, hot plates / melt pots, medical equipment, packaging equipment and food service equipment.
- Supply power of 24VDC
- 1/8 DIN temperature/process controller with (2) relay outputs, low voltage
- On/off, PID, or manual output control
- Stage control program for up to 64 ramp/soak actions
- Power consumption of 5VA maximum
- Operating temperature: 32 to 122°F (0 to 50°C)
- IP56 rated
Product details
| Thermocouple Type |
B, E, J, K, L, R, S, T, U, W, Pt100, JPT100 |
| Operating Temperature Min |
0°C |
| Output Voltage Min |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Operating Temperature Max |
50°C |
| Output Voltage Max |
250VAC |
| Product Range |
8B Series |
Other details
| Brand |
DWYER |
| Part Number |
8B-33-LV |
| Quantity |
Each |
| Technical Data Sheet (633.43KB) EN |
View or download |
