Product Overview

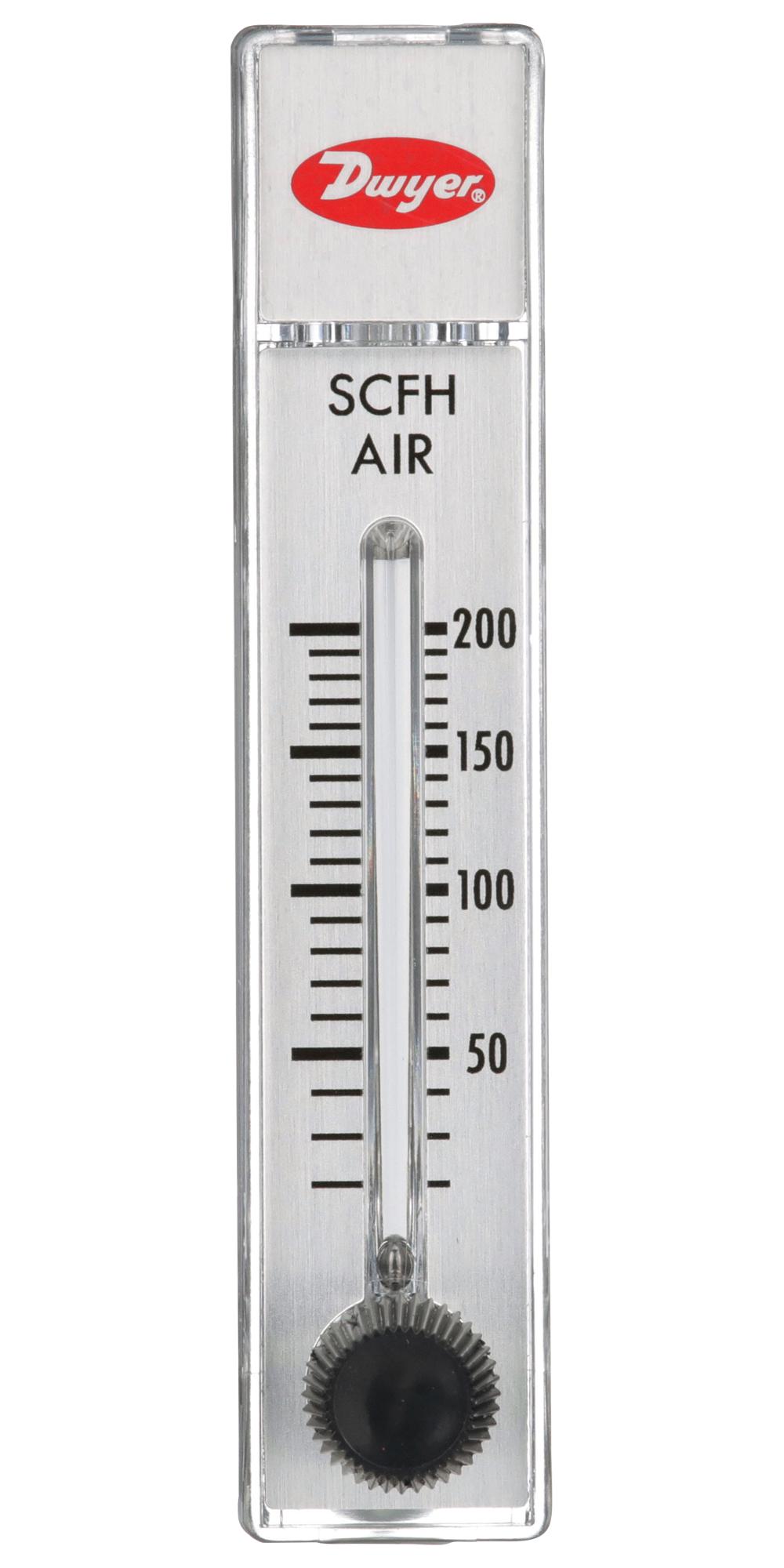

RMA-7-SSV is a series RM Rate-Master® polycarbonate flowmeter. It is a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. The Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges and easy cleaning. Typical applications include medical equipment, air samplers, gas analysers, pollution monitors, chemical injectors and cabinet purging.
- 51mm scale, stainless steel valve
- Flowmeter range from 5-50SCFH air
- Temperature limit of 130°F (54°C)
- 1/8˝ female NPT connection
- Eliminate the need for troublesome conversions with direct reading scales
- Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
- Long operation life with durable, shatter-proof polycarbonate body
- High repeatability enabled by precision injection moulding around a precision tapered pin
- Increased reading accuracy with special integral flow guides that stabilize float movement
- Save time with instantaneous flow reading with the presence of scale graduations on indicating tube
Product details
| Sensor Type |
Flowmeter |
| Flow Rate Max |
50SCFH |
| Operating Pressure Max |
100psi |
| Supply Voltage Max |
- |
| Accuracy % |
4% |
| Process Connection Size |
1/8" |
| Pipe Size |
- |
| Operating Temperature Min |
- |
| Product Range |
RATE-MASTER RMA Series |
| Port Size |
3.175mm |
| Flow Rate Min |
5SCFH |
| Operating Pressure Min |
- |
| Supply Voltage Min |
- |
| Accuracy |
± 4% |
| Media Type |
Air |
| Process Connection Type |
NPT Female |
| Sensor Mounting |
Bracket |
| Operating Temperature Max |
54°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Pressure Max |
100psi |
Other details
| Brand |
DWYER |
| Part Number |
RMA-7-SSV |
| Quantity |
Each |
| Technical Data Sheet (589.99KB) EN |
View or download |
