Description
Product Overview
AS6C1008-55SIN is a 1,048,57 6-bit low power CMOS static random access memory organized as 131,072 words by 8bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for very low power system applications, and particularly well suited for battery back-up non-volatile memory application.
- Access time is 55ns
- Low power consumption, 10mA typ operating current, 1µA typ standby current
- Single 2.7V to 5.5V power supply
- Fully compatible with all competitors 5V and 3.3V product
- Fully static operation, tri-state output
- Data retention voltage is 1.5V minimum
- 128K x 8 organization

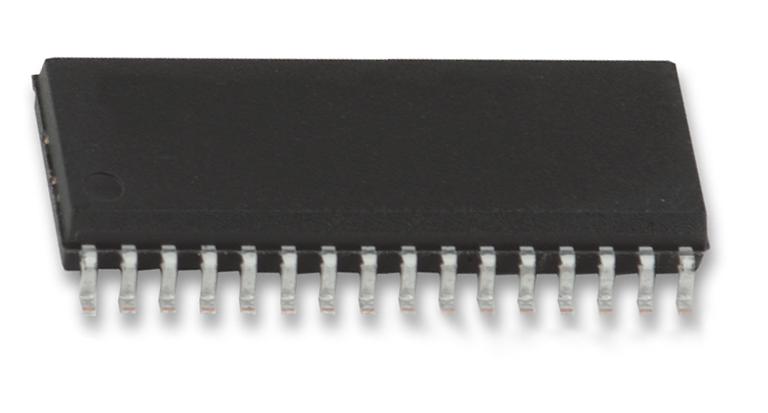

- 32 pin 450mil SOP package
- Industrial operating temperature range from -40°C to 85°C
Applications
Computers & Computer Peripherals
Product details
| SRAM Type | Asynchronous |
| Memory Configuration | 128K x 8bit |
| No. of Pins | 32Pins |
| Supply Voltage Max | 5.5V |
| Clock Frequency Max | - |
| Operating Temperature Min | -40°C |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Memory Density | 1Mbit |
| IC Case / Package | SOP |
| Supply Voltage Min | 2.7V |
| Supply Voltage Nom | 3V |
| IC Mounting | Surface Mount |
| Operating Temperature Max | 85°C |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | ALLIANCE MEMORY |
| Part Number | AS6C1008-55SIN |
| Quantity | Each |
| Technical Data Sheet (2.68MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1055.75 |
| 3-5 | ₹ 1044.98 |
| 5-10 | ₹ 1023.44 |
| 10+ | ₹ 1001.89 |
Bulk discount will be automatically applied during checkout based on quantity.
