Product Overview

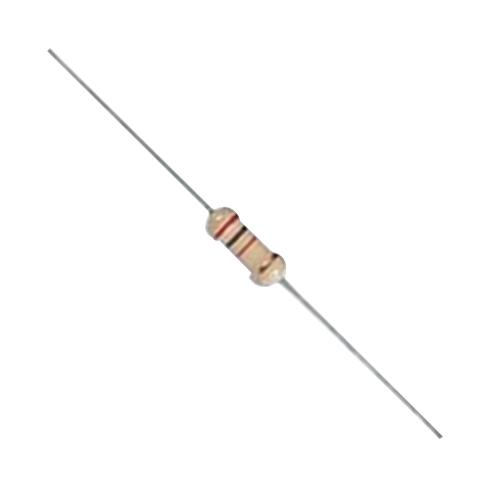

MULTICOMP PRO MCCFR0S2J0102A20. Through Hole Resistor, 1 kohm, MCCFR0SJ0xxxA20 Series, 500 mW, ± 5%, Axial Leaded, 350 V
Product details
| Resistance |
1kohm |
| Power Rating |
500mW |
| Resistor Case / Package |
Axial Leaded |
| Resistor Technology |
Carbon Film |
| Resistor Type |
General Purpose |
| Product Length |
9mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Product Range |
0 |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
350V |
| Temperature Coefficient |
-450ppm/°C |
| Product Diameter |
3mm |
| Product Width |
- |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCCFR0S2J0102A20. |
| Quantity |
Each |
| Technical Data Sheet (270.23KB) EN |
View or download |
