Product Overview

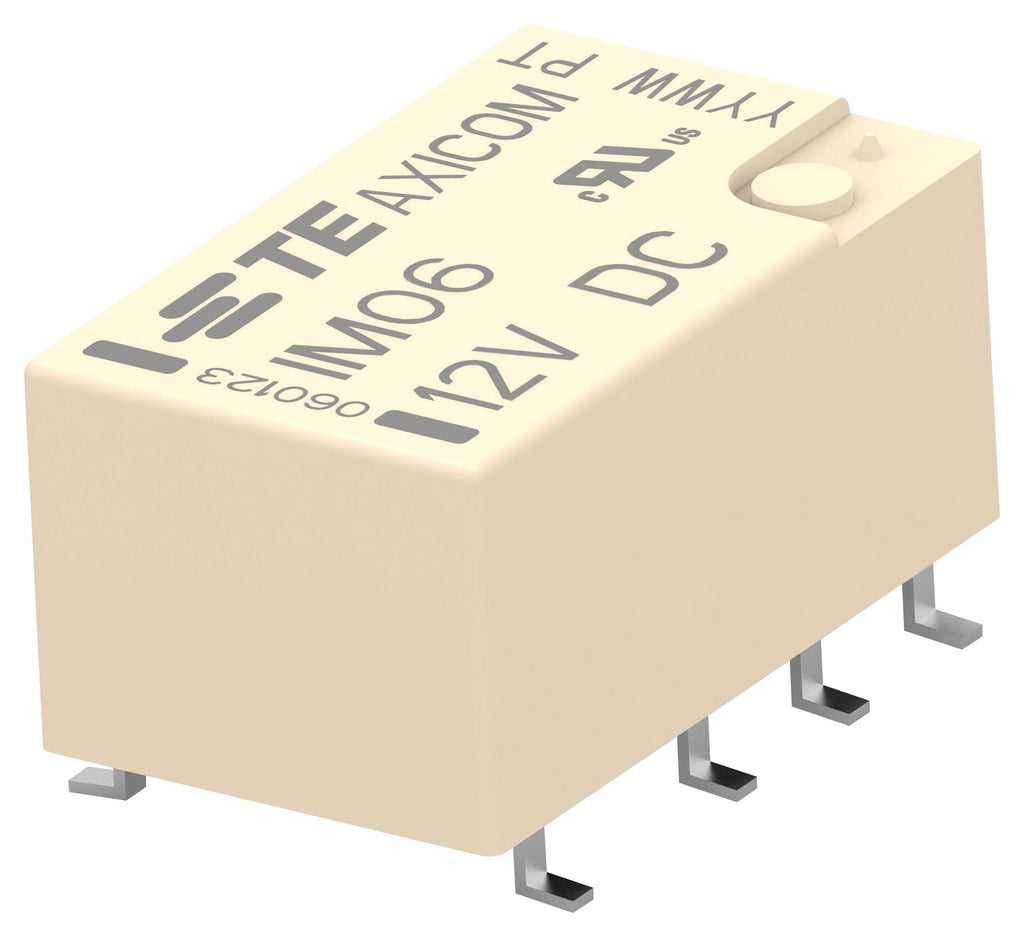

2-1462040-7 is an IM series signal relay. It has high mechanical shock resistance upto 50g functional. It is used in application such as telecommunication, access and transmission equipment, optical network terminals, modems, office and business equipment, consumer electronics, measurement and test equipment, industrial control, medical equipment, HVAC.
- Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm²
- SMT short gull wing terminal, standard coil
- Monostable coil type, 12VDC coil, standard pref type
- 2 form C, 2 CO contacts arrangements, 220VDC, 250VAC maximum switching voltage
- 2A rated current, 60W, 62.5VA switching power
- PdRu +Au covered contact material, twin contacts style
- 1ms typical operate time, high mechanical shock resistance upto 50g functional
- Operating temperature range from -40°C to 85°C
- UL 61810-1 (former UL 508) File No. E214025 approved
- Dimensions (L x W x H) is 10 x 6 x 5.65mm
Product details
| Coil Voltage |
12VDC |
| Contact Current |
2A |
| Relay Mounting |
SMD |
| Relay Terminals |
Gull Wing |
| Contact Voltage VDC |
220V |
| Coil Resistance |
1.029kohm |
| Contact Configuration |
DPDT |
| Product Range |
IM Series |
| Coil Type |
Non Latching |
| Contact Voltage VAC |
250V |
| Contact Material |
Gold, Palladium, Ruthenium |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
TE CONNECTIVITY - AXICOM |
| Part Number |
IM06SR |
| Quantity |
Each |
| Technical Data Sheet (2.70MB) EN |
View or download |
